Description

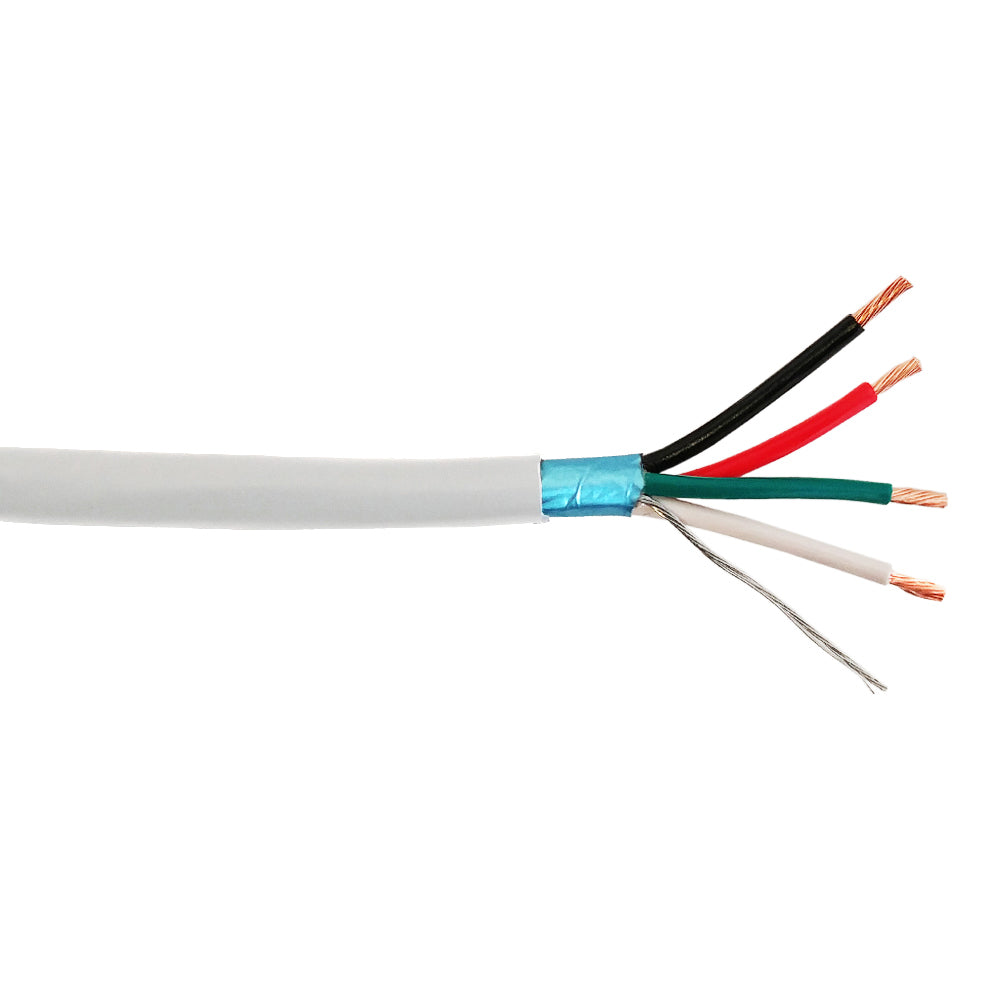

This 4 conductor 18AWG stranded shielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|
| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | White |
| Number of Conductors | 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC) |
| Jacket Material | PL-PVC |
| Outer Diameter | 5.5mm±0.15mm |
| Wire Gauge | 18 AWG |
| Material (conductors) | Bare Copper |
| Stranding | 16/0.25mm |
| Insulation Material |
PVC |
| Nominal Insulation Thickness | 0.46mm |
| Nominal Insulation Diameter | 1.7mm |
| Shielding | PET :100% Coverage with 25% Overlapping |
| Drain Wire | 24AWG Stranded Tinned Copper Overlapping |
| Ripcord | DuPont Kevlar® |
| Temperature Rating | -20℃ ~ 75℃ |
| Operating Voltage | 300V |
| Flammability Test | CMP Plenum |
| DCR: Conductor |
6.649 Ohms/1000 FT. 21.8 Ohms/Km (Nominal) |
| Certifications | |
| RoHS | Compliant |
| c(ETL)us | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 40 lbs |
Spec Sheets
Product Weights
| SKU | Weight | |
| BK-CON646-WH | 40.0 lb |
