Description

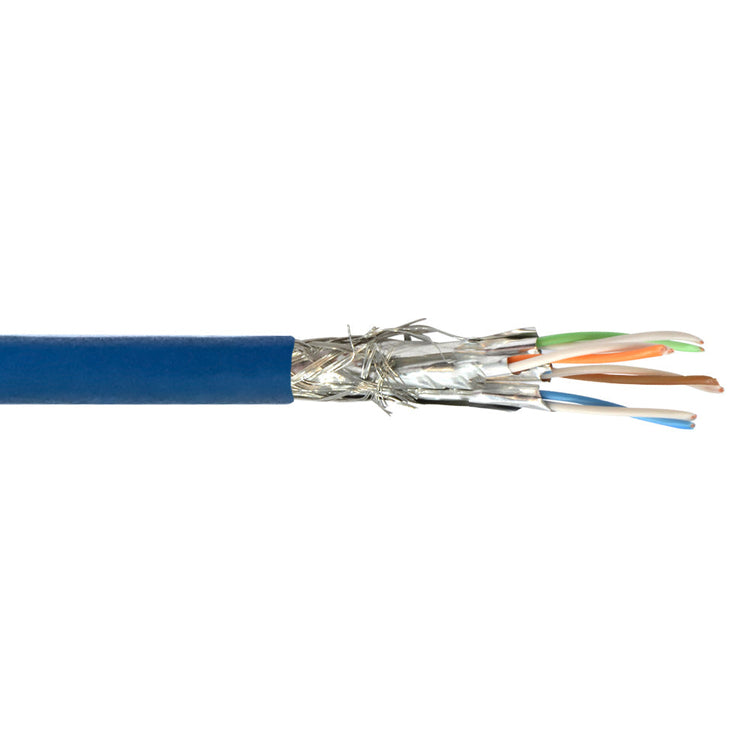

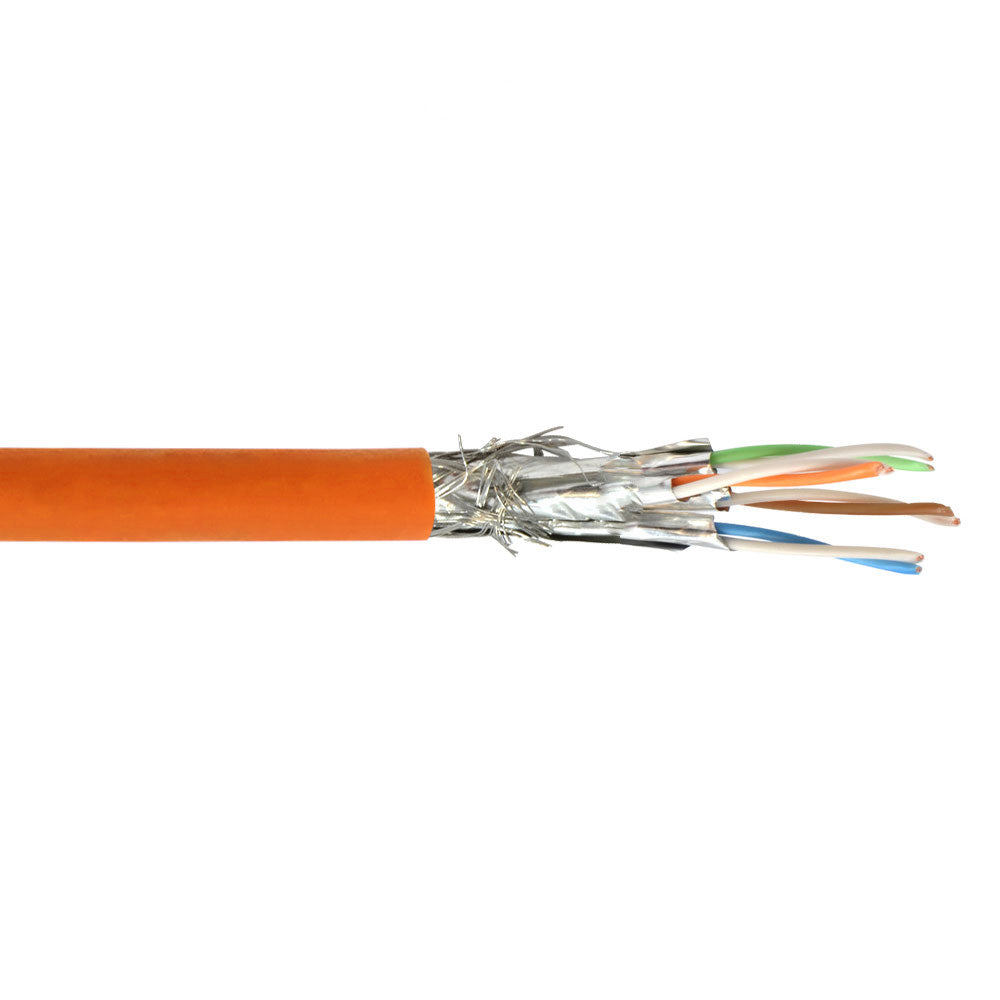

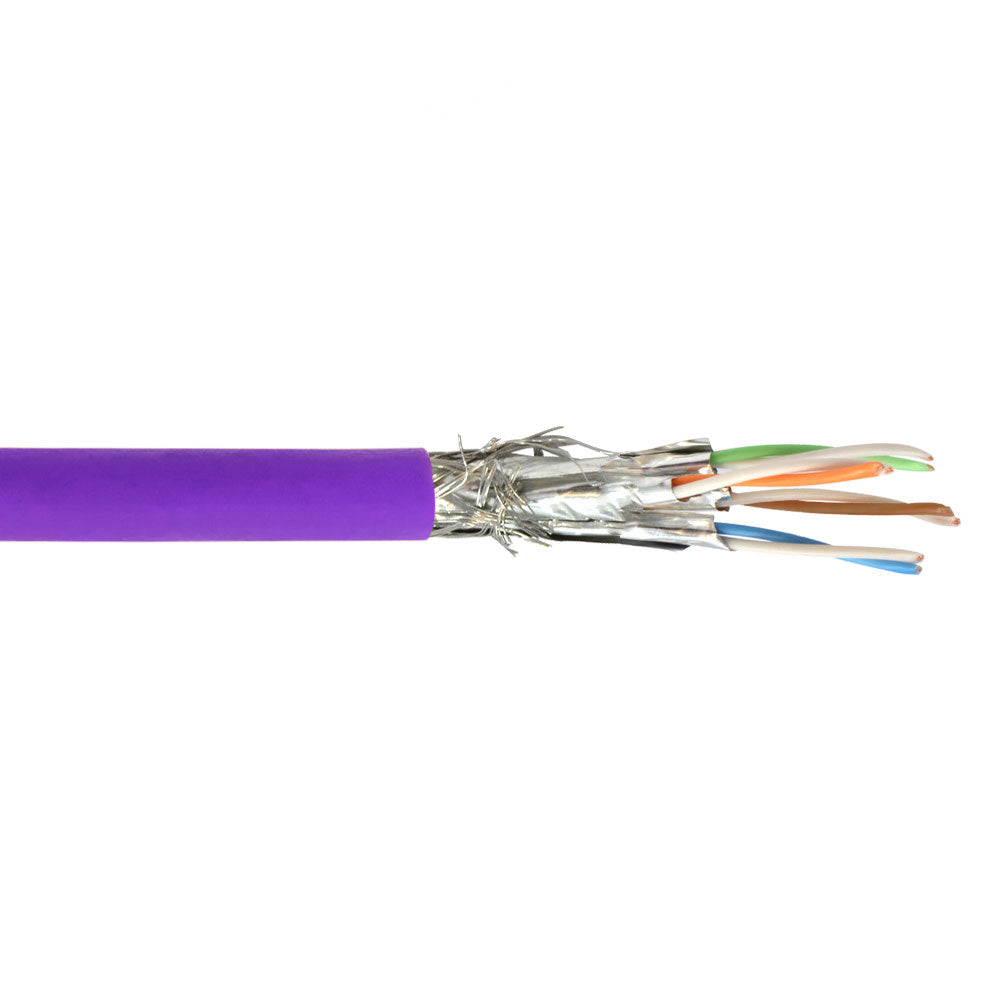

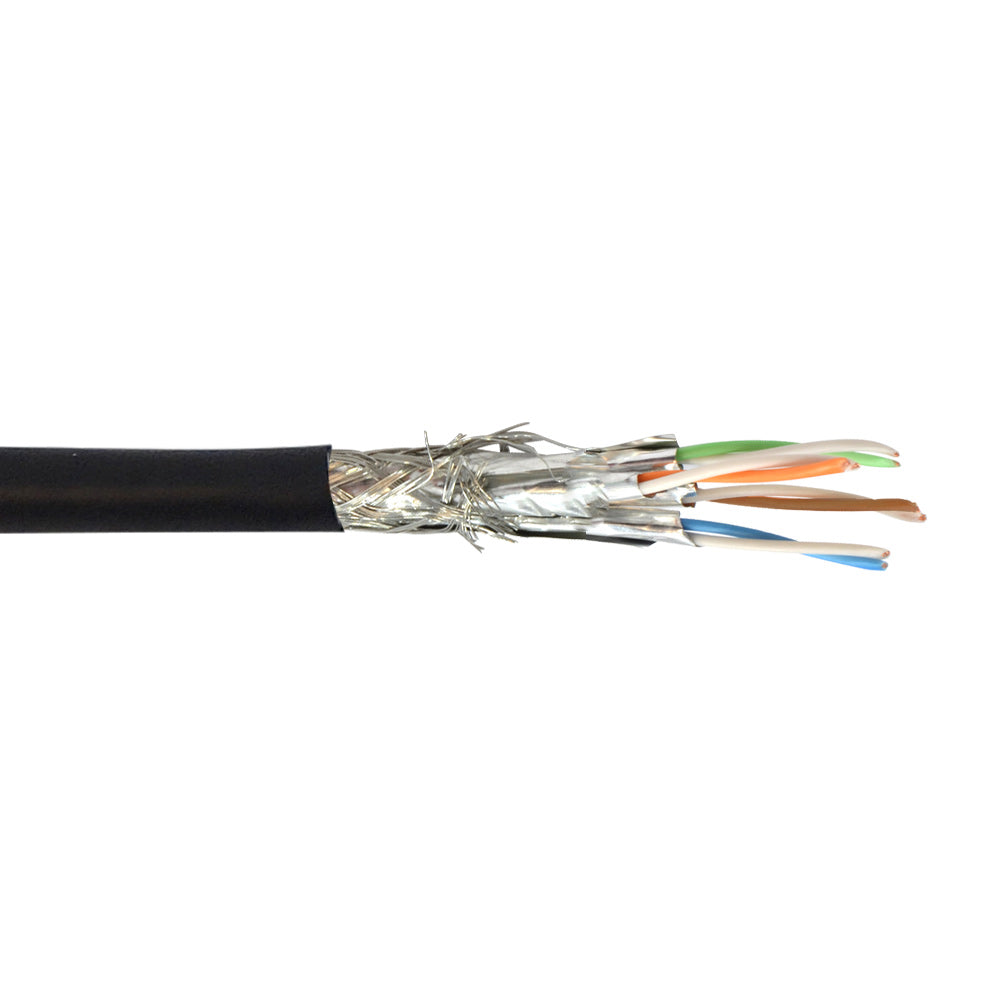

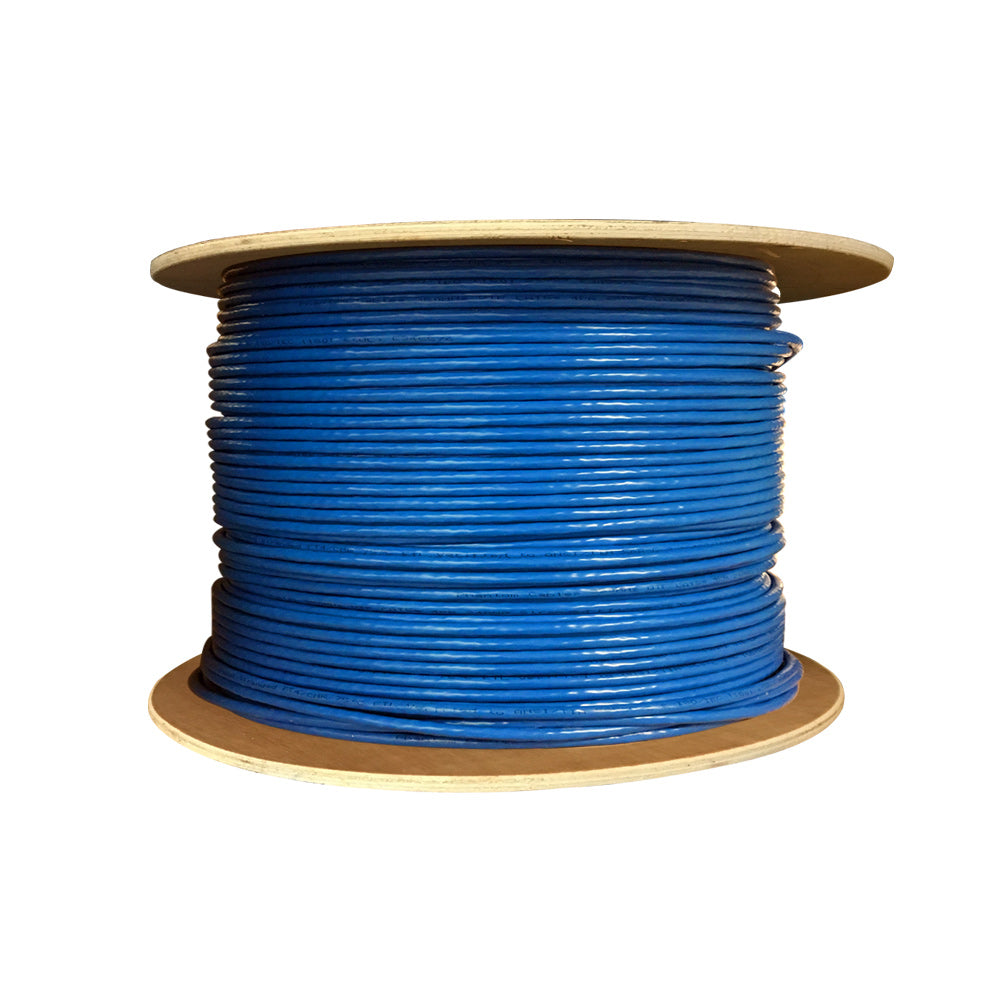

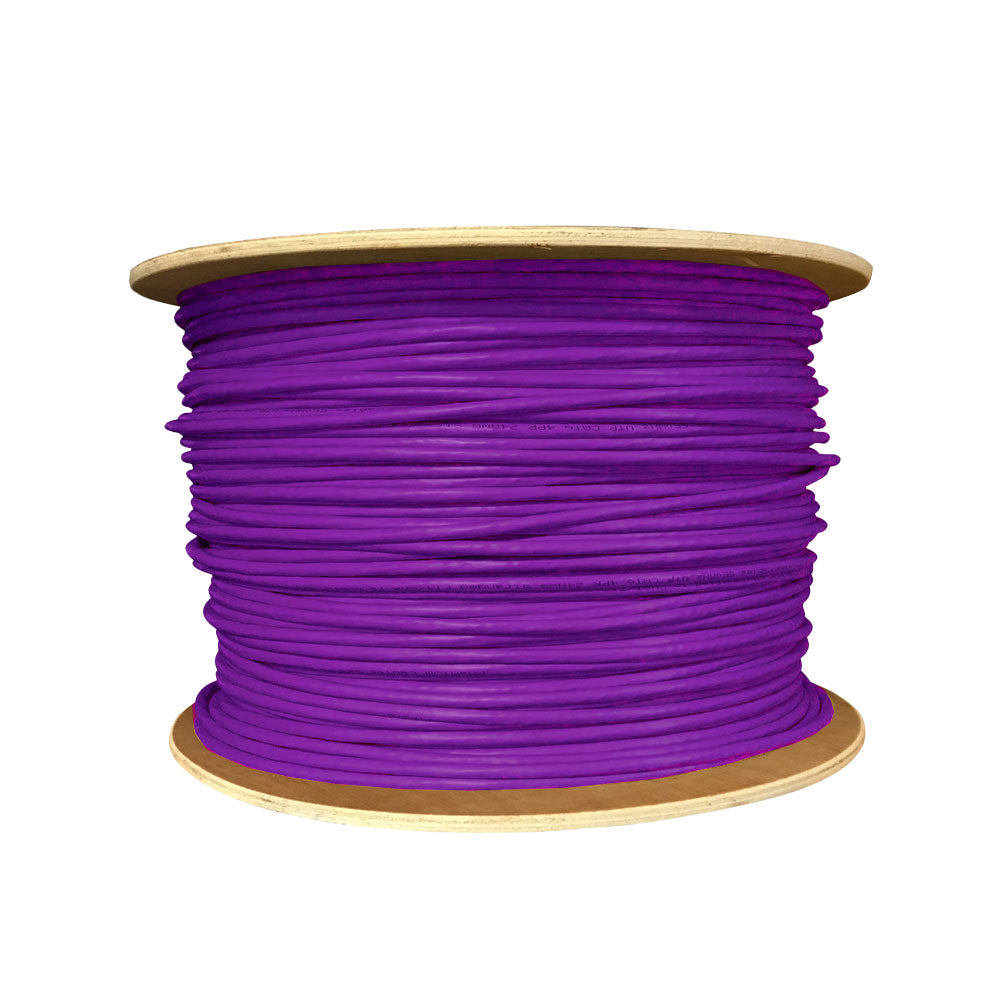

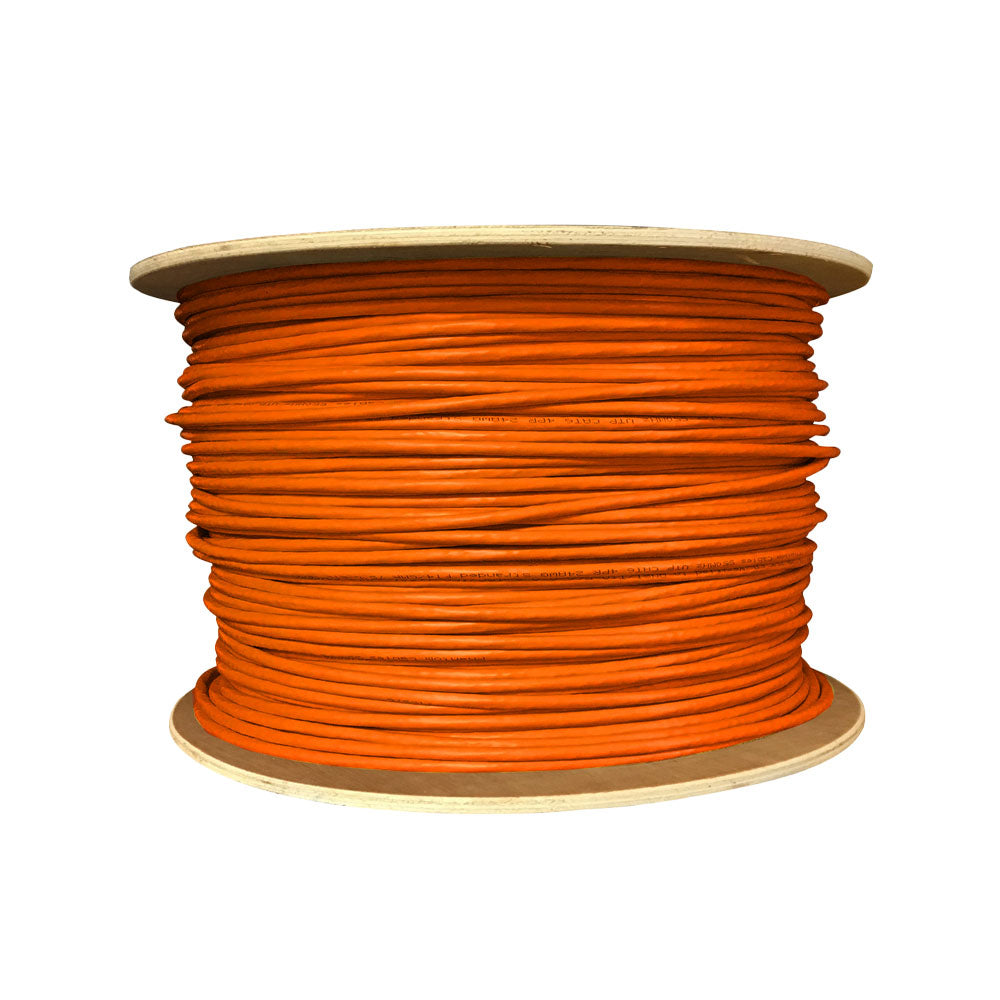

This bulk riser rated Cat6a cable is 1000 feet in length and consists of 4 pairs of 26AWG stranded wires with individually foil shielded pairs plus an overall braid. It is typically used to manufacture shielded Cat6a patch cables and terminated with shielded RJ45 plugs.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.80 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 26 AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Construction | 7/0.16±0.008 mm |
| Stranded Diameter | 0.6 mm |
| Cable Shielding | 25% Aluminum braided shield and individually foil shielded pairs |
| Insulation | PE |
| Insulation Nominal Thickness (mm) | 0.22mm |
| Insulation Diameter (±0.005) | 1-1.05 |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Jacket Outer Diameter (±0.2mm) | 6.0 |
| Jacket Nominal Thickness (mm) | 0.5 - 0.6 |
| Temperature Rating | 75 deg C |
| Electrical Characteristics | |
| Before Aging | Insulation Tensile Strength: >1.68 Kgf/mm2 Elongation (%): >300 |
| Aging Condition (ºC x hrs) |
100x168 |
| After Aging | Jacket Tensile Strength: >1.41 Kgf/mm2 Elongation (%): >=100 |
| Max. Conductor DC Resistance (/KM) | 26:138 |
| Min. Conductor DC Resistance (/KM) | PE:100M |
| Dielectric Strength | AC-500V/1 Min No Breakdown |
| DC Resistance Unbalance | Max. 2% |
| Pair-to-Ground Capacitance Unbalance | Max. 330PF/100M |
| Input Impendence |
4-100MHz 100+/-15ohm |
| Mean Characteristic Impedance | @100MHz: 100+/-5 Ohms |
| Nominal Velocity of Propagation (NVP) | 68 ±2% |
| Propagation Delay | @ 100MHz ≧ 537.6 ns/100m |
| Propagation Delay Skew | Max. ≧ 45 ns/100m |
| Compatible Products | |
| CN-RJ45C6A2S-50 | RJ45 Cat6a Shielded Plug with Insert (Solid or Stranded) (8P 8C) - Pack of 50 |
| CN-BTM68-xx-50 | RJ45 Molded Style Cat6 Boots - 6.8mm ID - Pack of 50 |
| CN-FOIL-TAPE | 50m Roll of Adhesive Mylar Foil Tape (6mm Width) |
| Approvals | |
| ETL | Compliant |
| c(UL)us | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 25.96 lbs [11.77 kg] |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-C6AST-4BKS | Black | 32.0 lb |
| BK-C6AST-4BLS | Blue | 32.0 lb |
| BK-C6AST-4GNS | Green | 32.0 lb |
| BK-C6AST-4GYS | Grey | 32.0 lb |
| BK-C6AST-4RDS | Red | 32.0 lb |
| BK-C6AST-4WHS | White | 32.0 lb |
| BK-C6AST-4YLS | Yellow | 32.0 lb |
