Description

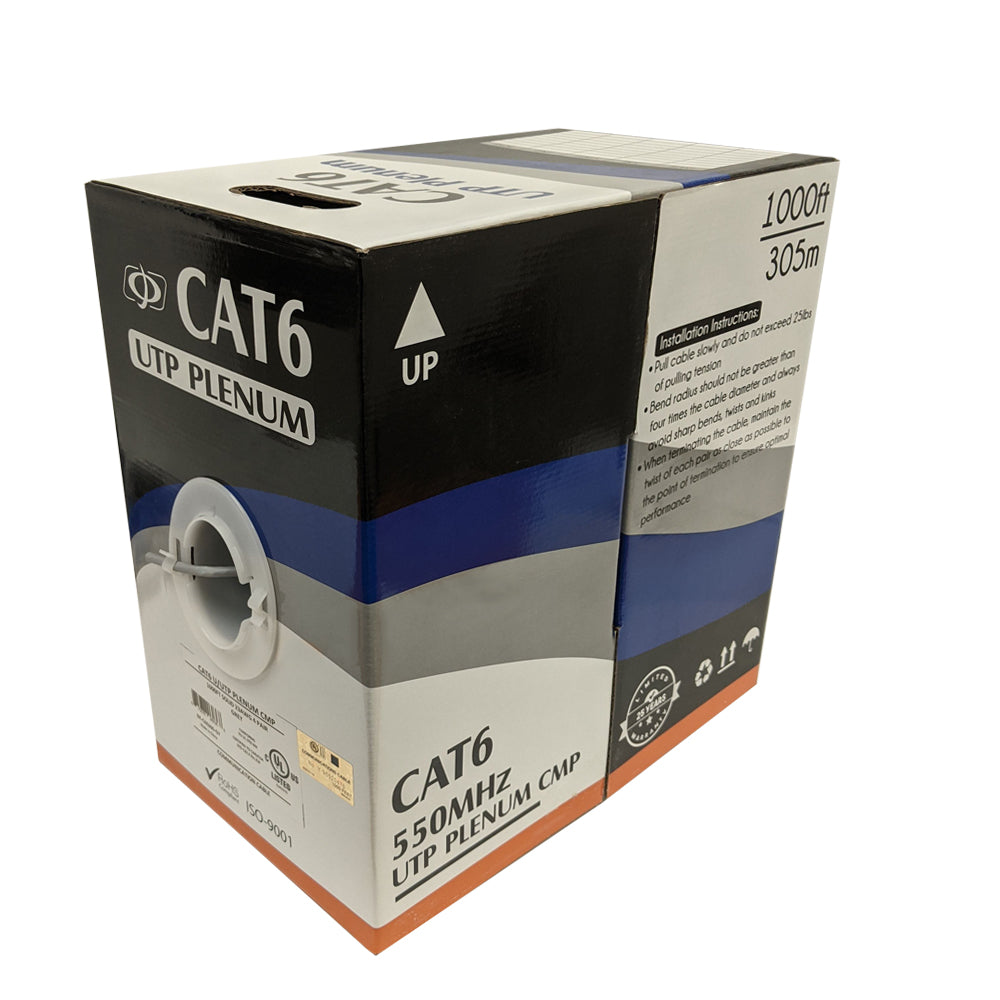

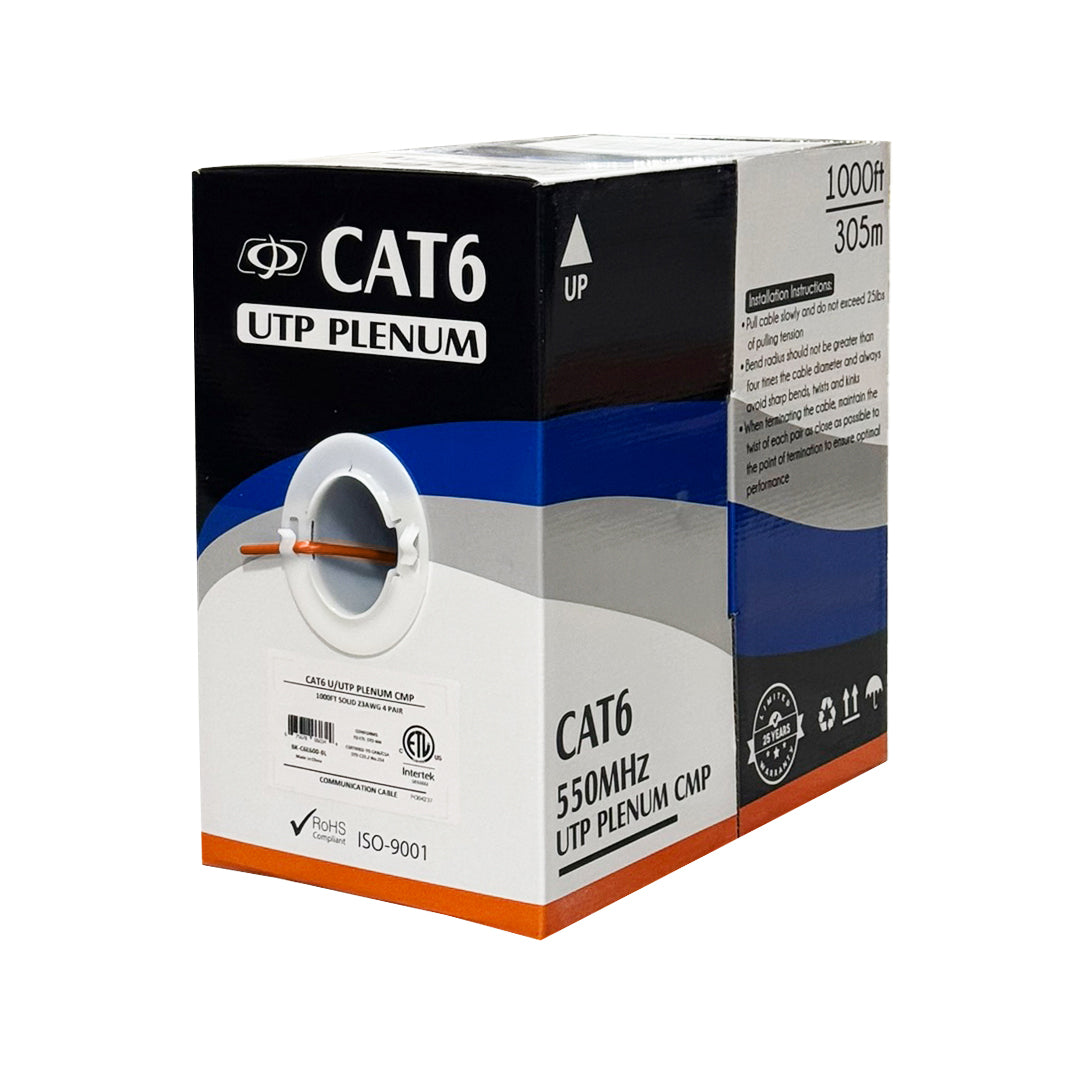

This bulk CAT6 plenum rated cable is 1000 feet in length and consists of 4 pairs of 23AWG solid bare copper wires. It is designed for use in data networking, PoE, security networking and voice applications. The cable is plenum (CMP) UL listed, RoHS Compliant and meets and/or exceeds CAT6 TIA/EIA 568 C.2 standards. It is typically used in plenum environments as premise wiring and terminated from a patch panel to a Cat6 jack.Ā Ā
Suitable Applications:
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, 622 Mb/s ATM, 1.2 Gb/s ATM, 1.2/2.4 Gb/s ATM, Surveillance, PoE++, PoE+, PoE
|
Physical Characteristics
|
|
|---|---|

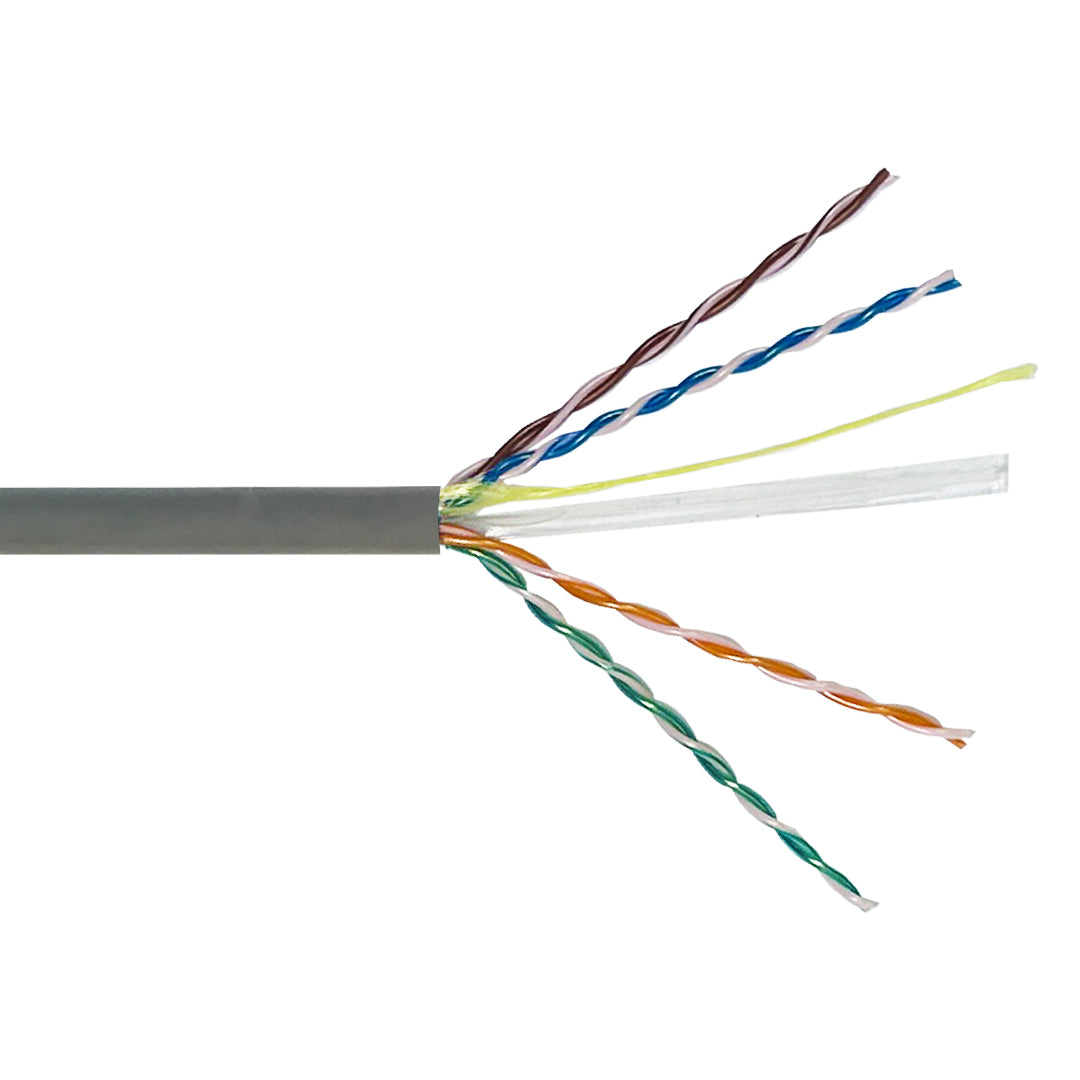

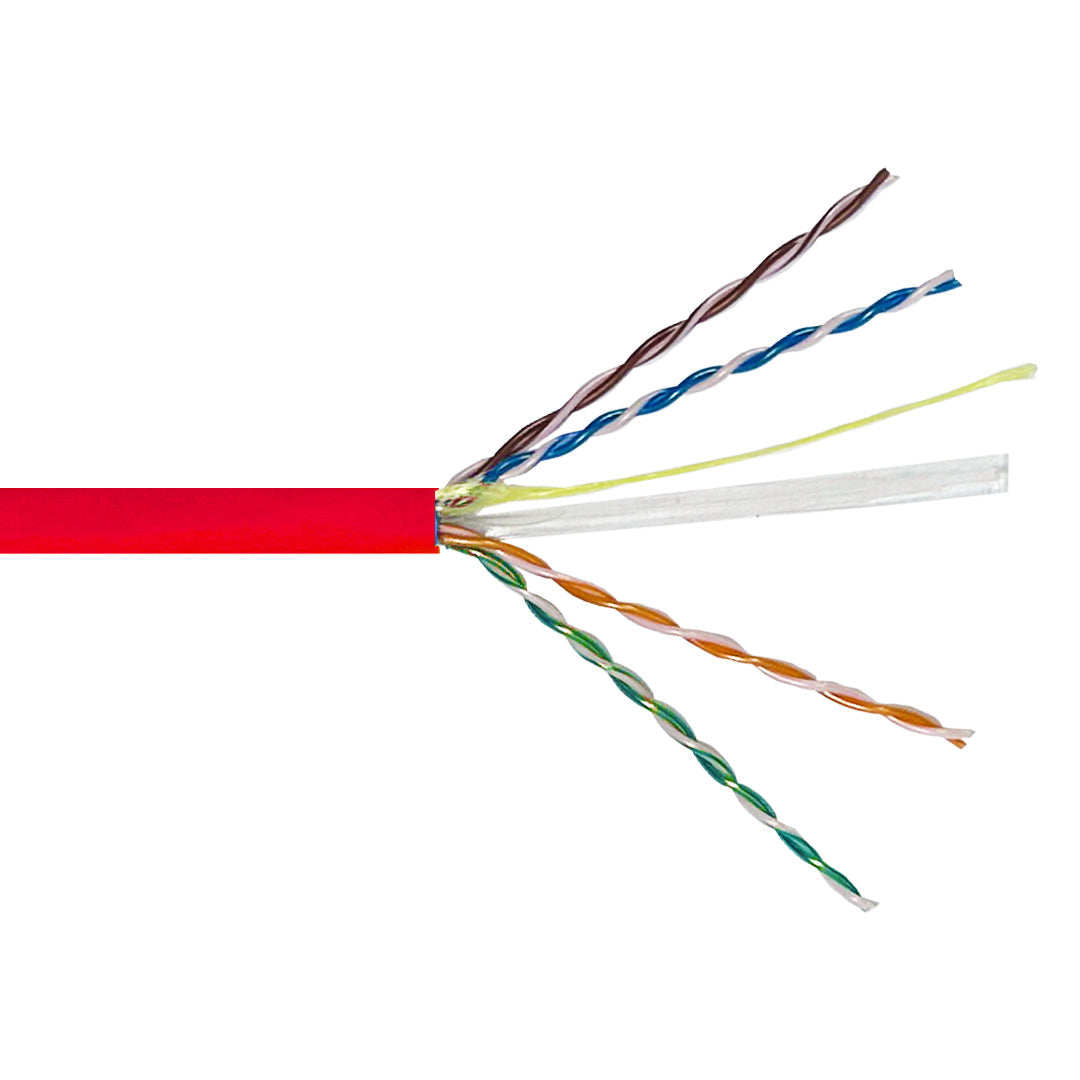

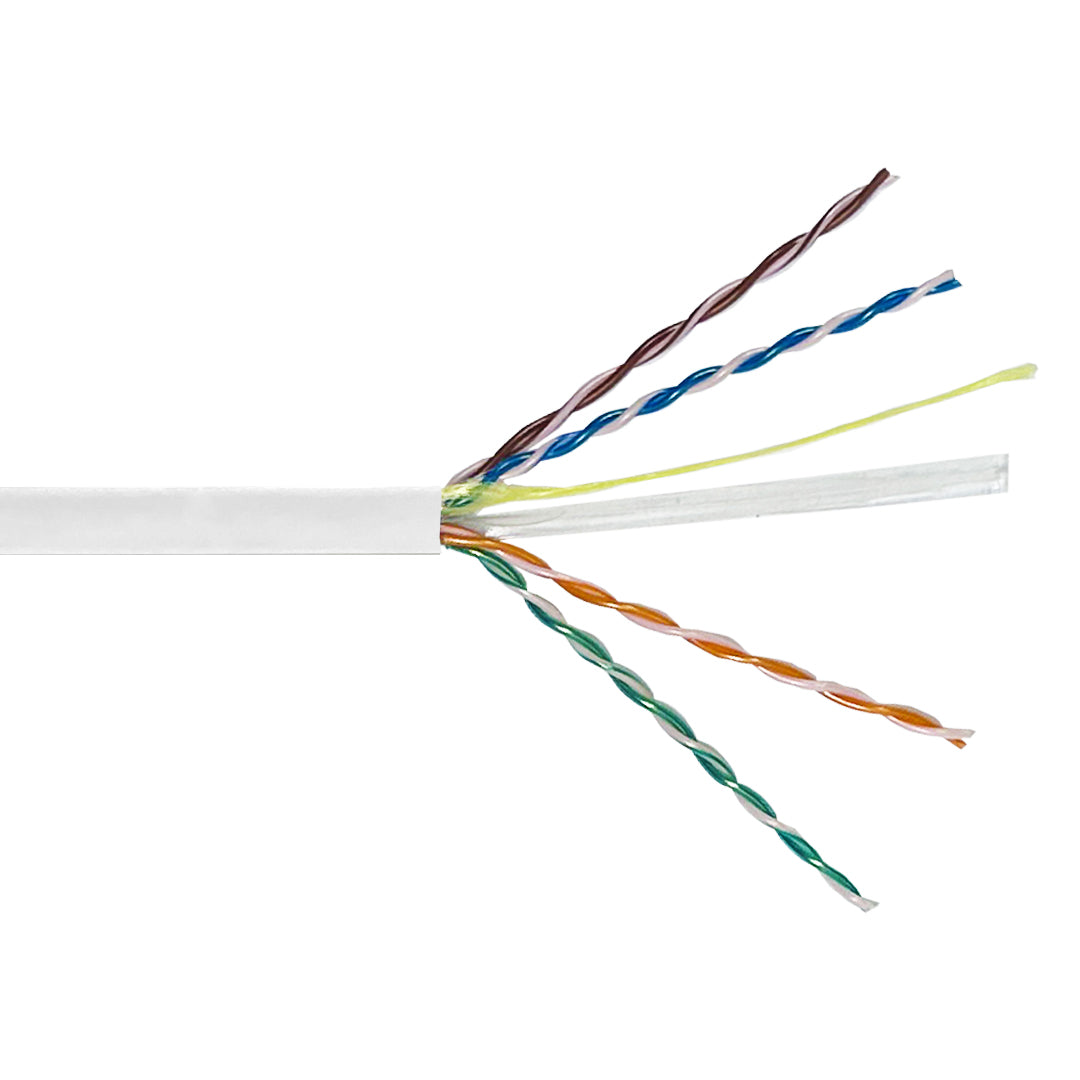

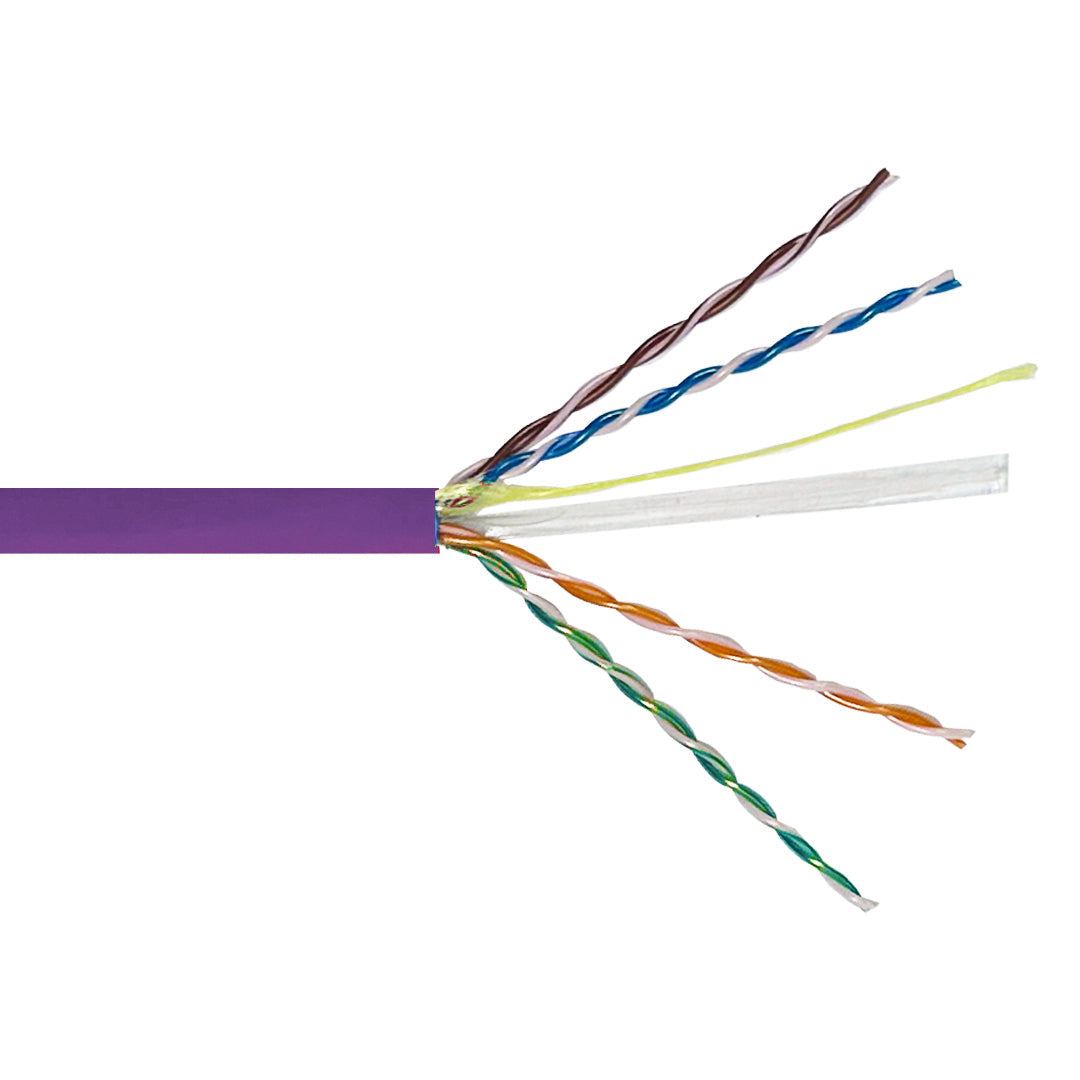

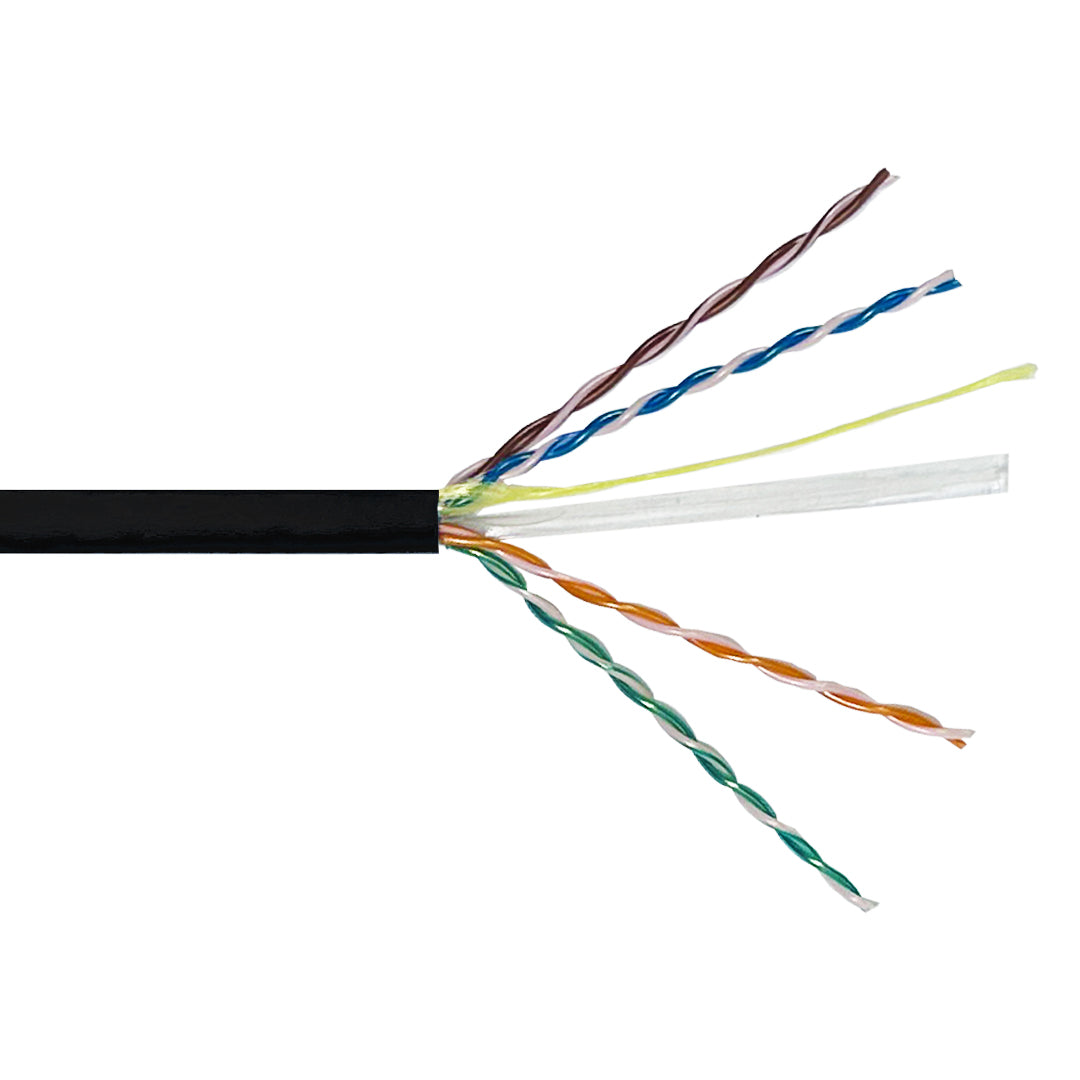

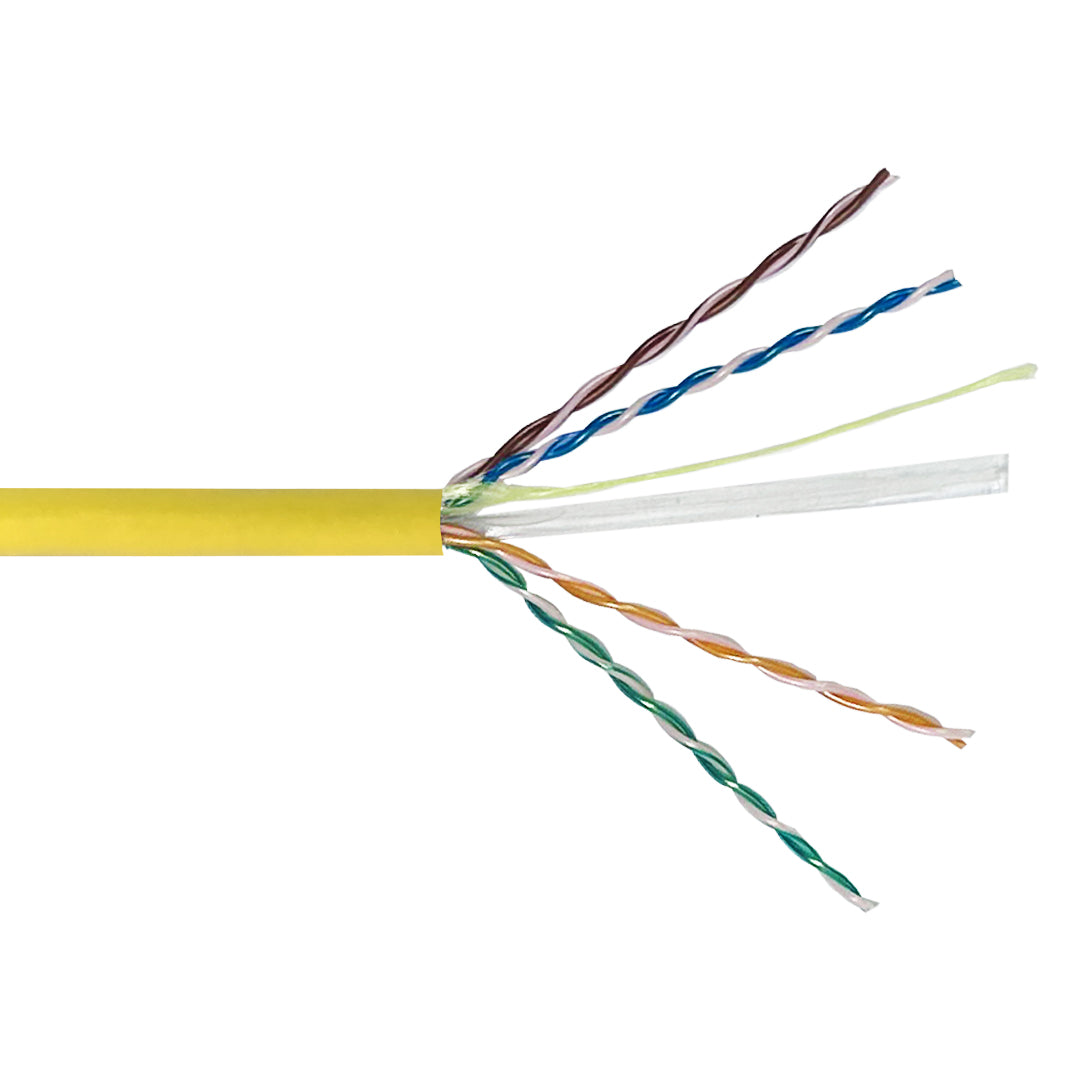

| Color | Black/Blue/Grey/Orange/Purple/Red/White/Yellow |
| Cable Length | 1000 foot [305m] |
| Cable Diameter | 6.00 mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 23AWG Solid |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP [Plenum Rated] |
| Cable Shielding | None |
| Temperature Rating | -20ā ~ +80ā |
|
Performance
|
|
| FlukeĀ® CAT6 Channel Test | Yes |
| FlukeĀ® CAT6 Permalink Test |
Yes |
| FlukeĀ® CAT6 Patch Cable Test |
Yes |
| Frequency | 550 MHz |
| Voltage | 300V |
| Capacitance | 5.6nF/100m .Nom |
| Characteristic Impedance | 1-100MHz,100Ā±15%;101-250MHz,100Ā±22%;251-500MHz,100Ā±25% |
| Velocity of propagation | ā„65% |
| DCR: Conductor | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance | ā¦ 5% |
|
Approvals
|
|
| c(UL)us | Yes |
| ISO/IEC 9001 | Yes |
| TIA/EIA 568C.2 | Yes |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Warranty Information
|
|
| Warranty | 25 year |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 33.5 lbs [15.2kg] |
