Description

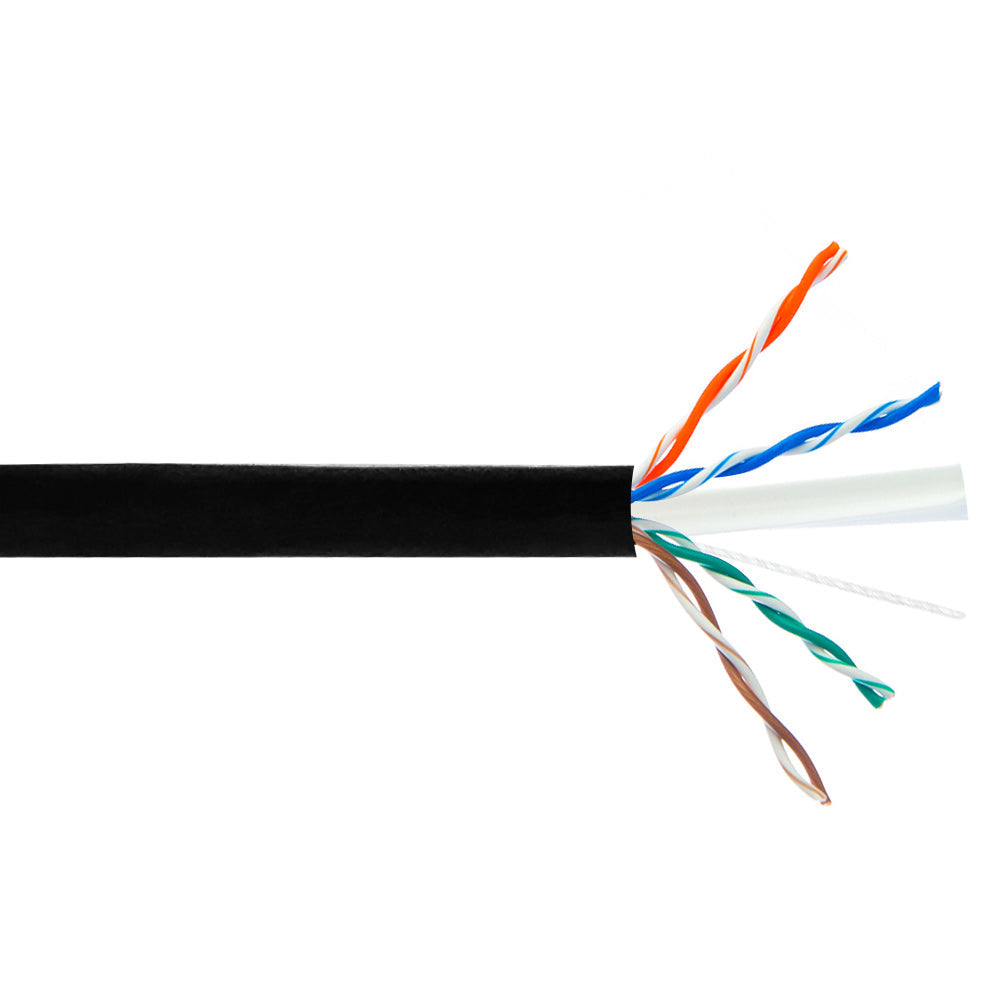

This bulk outdoor rated Cat6 cable is 1000 feet in length and consists of 4 pairs of 23AWG solid wires. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
|
Physical Characteristics
|
|||
|---|---|---|---|
| Cable Length | 1000 foot [305m] | ||
| Color | Black | ||
| Cable Diameter | 6.20±0.10 mm | ||
| Number of Pairs | 4 Pairs | ||
| Wire Gauge | 23AWG Solid | ||
| Conductor Material | 100% Bare Copper | ||
| Jacket Material | LLDPE | ||
| Jacket Rating | Direct Burial / UV | ||
| Cable Shielding | None | ||
| Temperature Rating | -40°C ~ +75°C | ||
| Jacket Average Thickness | 0.60mm | ||
| Jacket Minimum Thickness | 0.54mm | ||
| Insulation | PE | ||
| Insulation Average Thickness | 0.220mm | ||
| Insulation Minimum Thickness | 0.205mm | ||
| Insulation Diameter | 1.01±0.01mm | ||
| Assembly Diameter | 5.10±0.20mm |
||
| Twisted Pair Diameter | 2.02±0.02mm | ||
| Rip Cord | Yes - Nylon | ||
| Separator | Polyolefin | ||
| Voltage Rating | 30V | ||
|
Electrical Characteristics
|
|||
| Before Aging | Tensile Strength (Mpa): >=10.6 Elongation (%): >=300 |
||
| Aging Condition (ºC x hrs) |
100x168 | ||
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
||
|
Environmental
|
|||
| UV | Yes | ||
| RoHS | Yes | ||
|

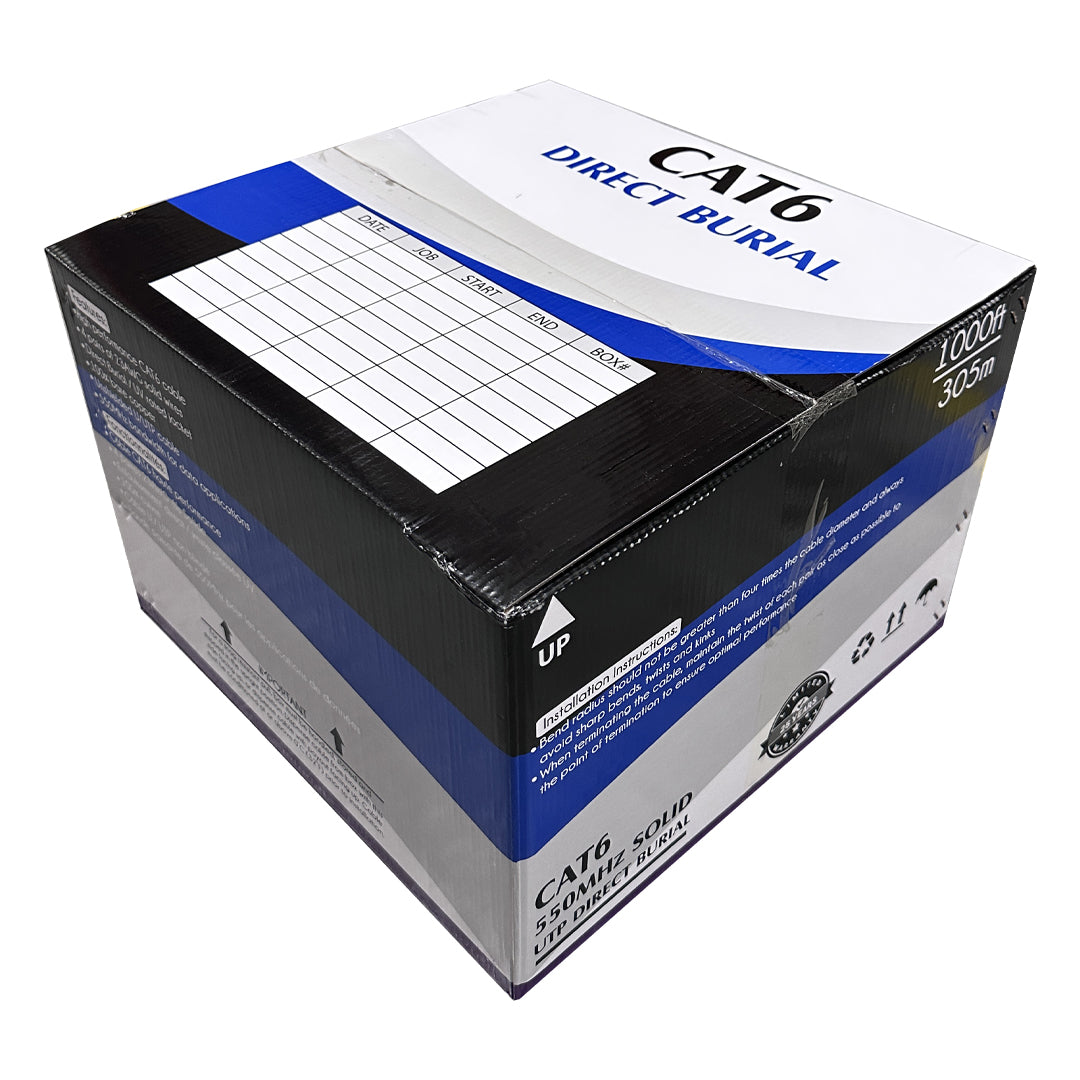

Packaging Information
|
|||
| Package Quantity | 1 | ||
| Product Weight | 34.1 lbs | ||
