Description

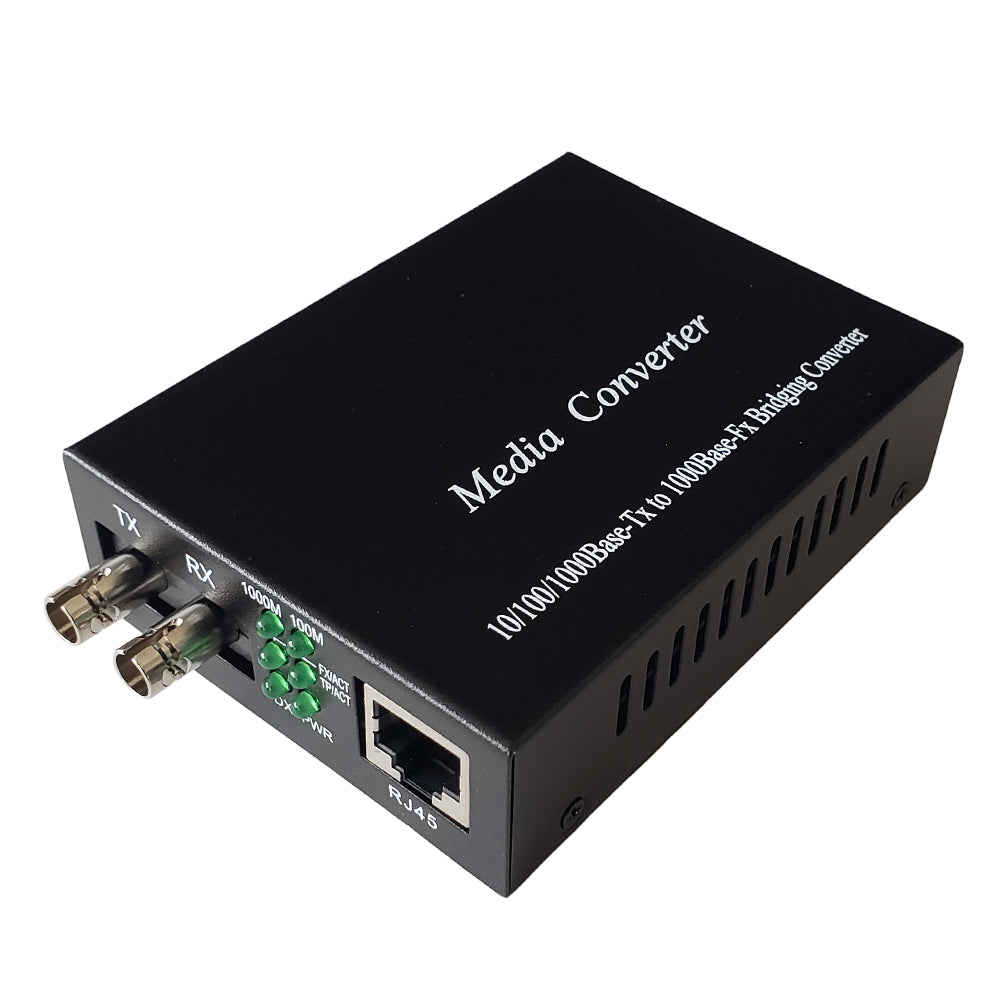

This singlemode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 10km over a singlemode ST fiber optic cable. The converter can be used as a standalone unit or in pairs.
Features
- Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-LX/LH
- Supporting full-duplex and half-duplex and its auto-sensed
- Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation

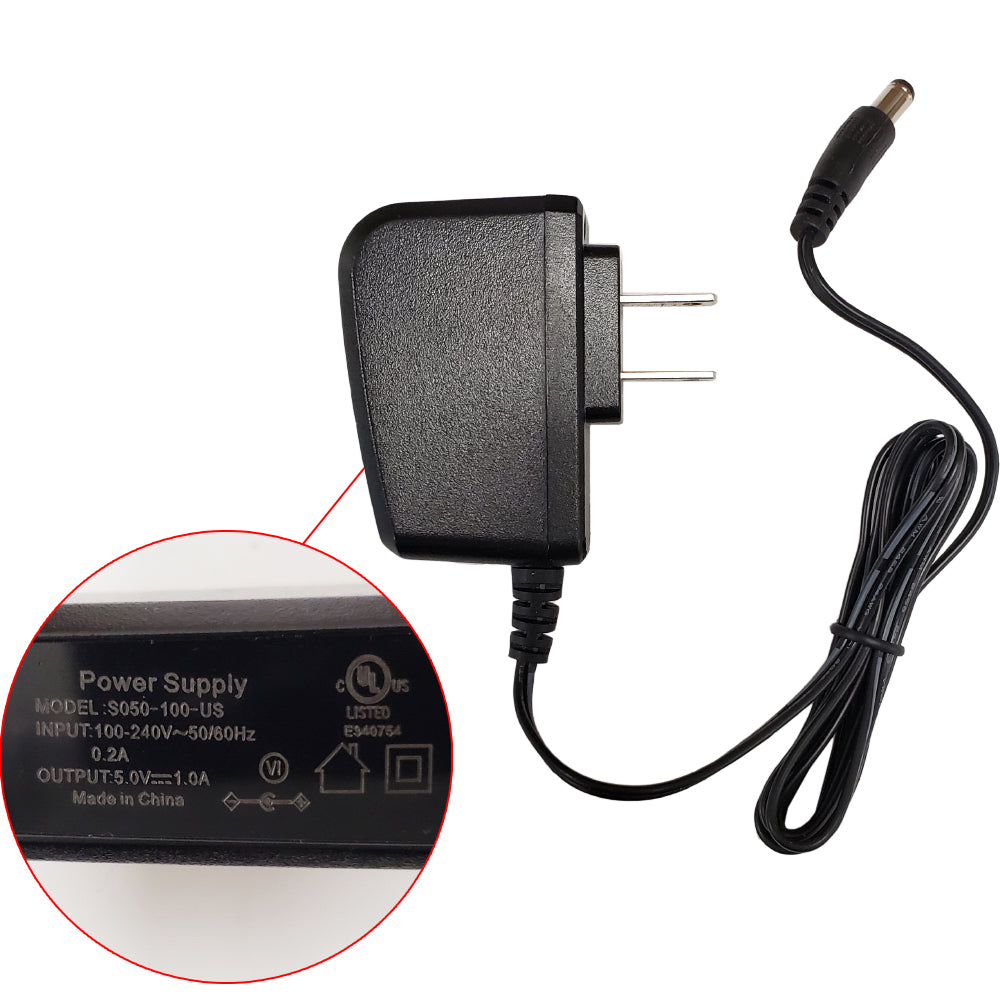

- UL certified power adapter
Application
| Physical Characteristics | |
|---|---|
| Color | Black |
| Dimensions | 26mm (H) * 70mm (W) * 94 mm (D) |
| Housing | Metal |
| Operating temperature | -0~70ÂșC |
| Maintaining temperature | -40~70ÂșC |
| Operating humidity | 5% to 90% |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Standards | IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |

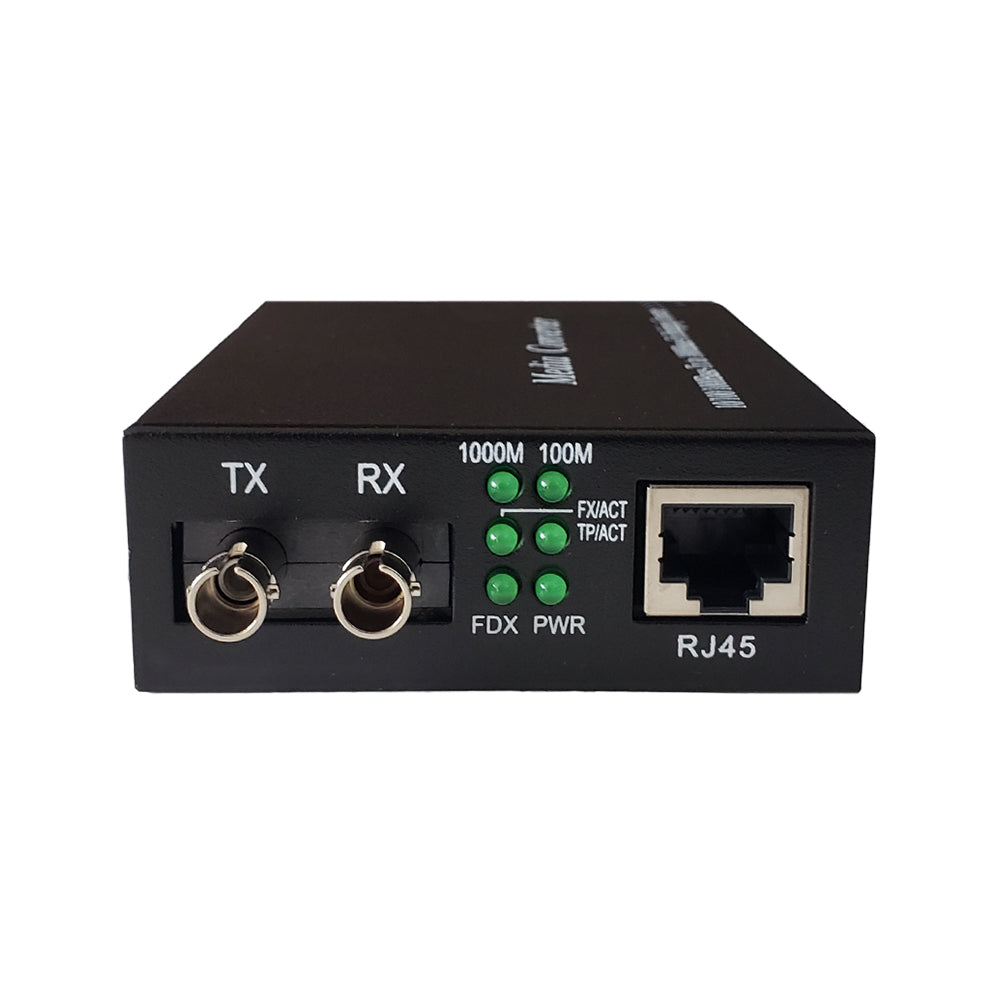

| LED | PWR (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair link1000M), TP LINK100 (twisted pair link 100M), TP ACT (twisted pair packet forwarding) |
| Power | |
| Power Supply | DC5V 1A (external), AC220 0.5A/DC-48 (built-in) |
| Power consumption | Full load <3W |
| Connectors | |
| Fiber Connector | ST Singlemode 9/125”m |
| Ethernet Connector | RJ45 STP/FTP |
| Performance | |
| Transmission Distance |
1310nm@10Km CAT6/CAT6A twisted pair: 100m |
| Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps |
| Wavelength |
1310nm |
| Optical Power | -9dBm to -3dBm |
| RX sensitivity | -22dBm |
| RX overload | ïŒ0dB |
| MAC Address table | 2K |
| Buffer space | 1M |
| Delay | Store-and-forward: <10ÎŒs; cut-through: 1ÎŒs |
| BER | <10-9 |
| MTBF | 100,000 hours |
| Certifications | |
| CE | Compliant |
| FCC | Compliant |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.57 lbs |
| Warranty Information | |
| Warranty | 1 Year |
Â
Product Weights
| SKU | Weight | |
| FO-MC2011 | 0.57 lb |
