Description
This bi-directional 10/100/1000Mbps singlemode to multimode media converter allows communication between singlemode and multimode fiber optic cable networks. It can support a total distance of 2km over a SC multimode cable and 20k over a SC singlemode cable.
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Dimensions | 94mm x 72mm x 25mm (L x W x H) | |
| Housing | Metal | |
| Operating Temperature | 0℃ ~ 70℃ | |
| Relative Humidity | 5% to 90% (non-condensation) | |
| Wavelength | Singlemode:1300nm, 1310nm, 1550nm Multimode: 1310nm, 1300nm, 850nm |
|
| Standard | IEEE802.3u 100Base-FX IEEE802.3z 1000BaseSX/LX |
|
| Power | ||

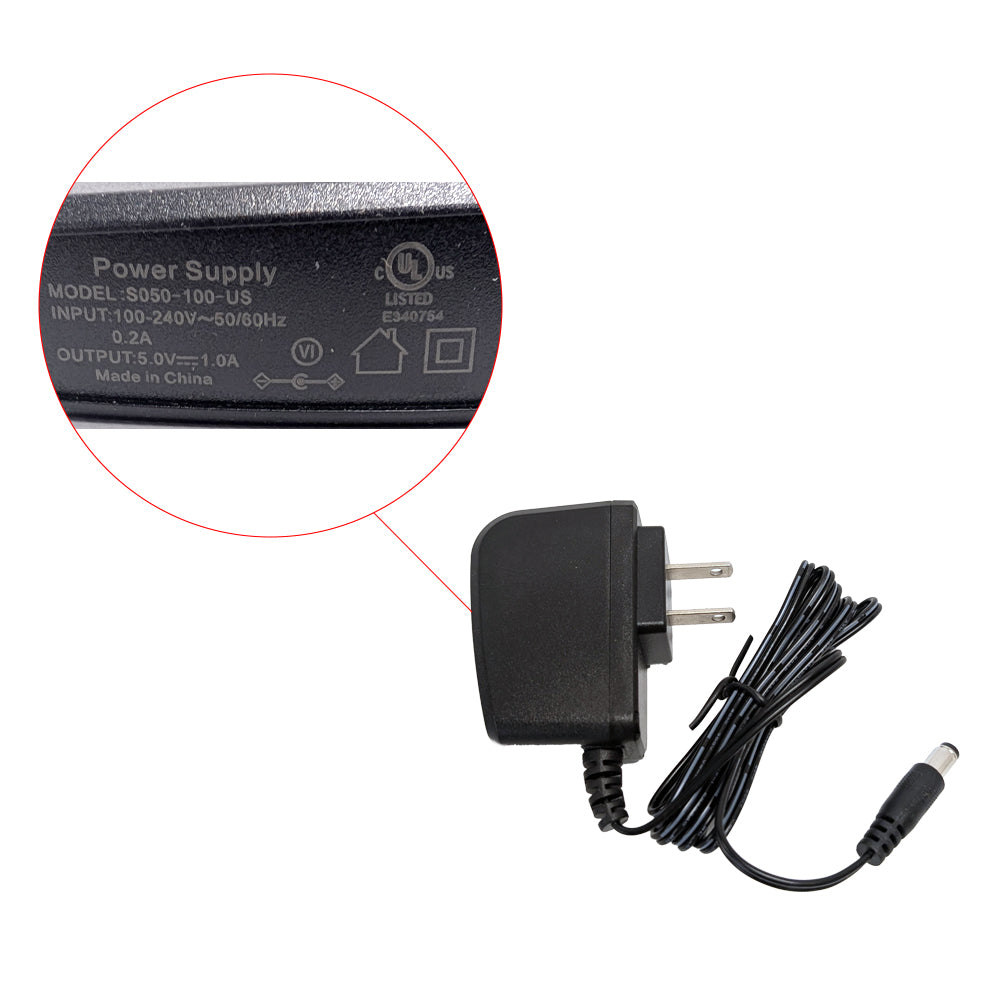

| Power Supply | DC 5V 1A | |
| Power Consumption | 2.5W | |
| Connectors | ||
| Multimode Connector | SC | |
| Singlemode Connector | SC | |
| Performance | ||
| Media Supported | Singlemode Fiber (8.3/125um, 8.7/125, 9/125um, 10/125um) Multimode Fiber (50/125um, 62.5/125um, 100/140um) |
|
| Referenced Transmission Distance | Dual-Fiber Singlemode - 2~80km Dual-Fiber Multimode - 2km |
|
| Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps | |
| Features | Wavelength Switch, Mode Switch, Fiber Switch, Wavelength Switch | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.85 lbs [0.03kg] | |
| Warranty Information | ||
| Warranty | 1 Year | |
