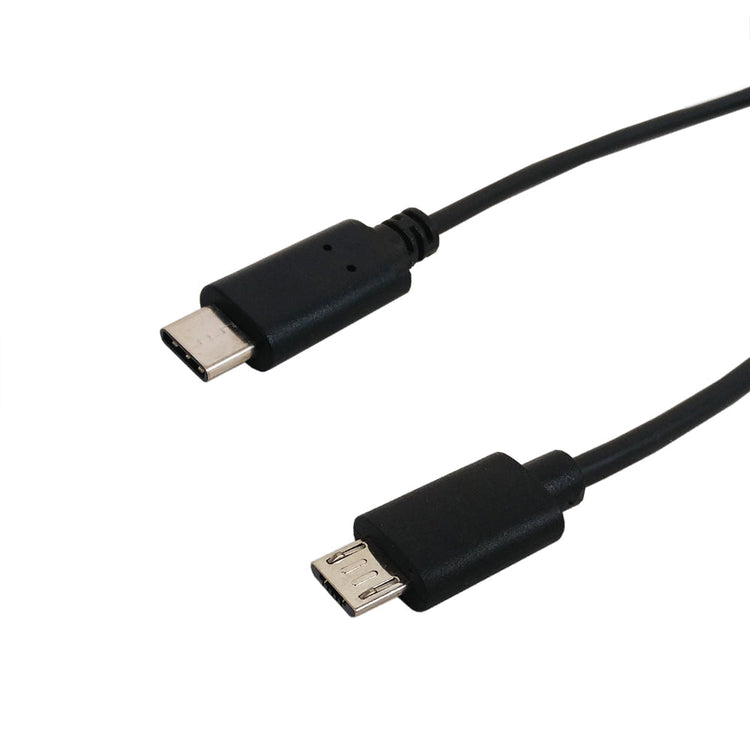

This USB 2.0 cable consists of a USB type-C male on one end and a USB Micro-B male on the other end. It is capable of transferring data at 480Mpbs and is typically used to connect a Micro-USB 2.0 device to a newer USB Type-C laptop or desktop computer. USB Type-C is also compatible with Thunderbolt™ 3 ports.
Physical Characteristics |
Color |
Black |
Connector Plating |
Nickel Plated |
Contact Plating |
Gold Plated |
Cable Diameter |
3.0 mm |
Wire Gauge |
30AWG (data) / 24AWG (power) |
Jacket Material |
PVC - Polyvinyl Chloride |
Strain Relief |
Molded |
Connector(s) |
Connector A |
9-pin USB 2.0 Micro-B Male |
Connector B |
9-pin USB 2.0 Type-C Male |
Performance |
Rating |
USB 2.0 |
Speed |
480 Mbps |
Compatibility |
Backwards Compatible Previous Generation USB |
Power |
3 Amp |
Environmental |
RoHS |
Yes |
Reach |
Yes |
Conflict Minerals |
Yes |
Packaging Information |
Package Quantity |
1 |
Warranty Information |
Warranty |
Limited Lifetime |
1.5ft |
3ft |
6ft |
10ft |
15ft |
0.03 lbs |
0.05 lbs |
0.11 lbs |
0.18 lbs |
0.27 lbs |
