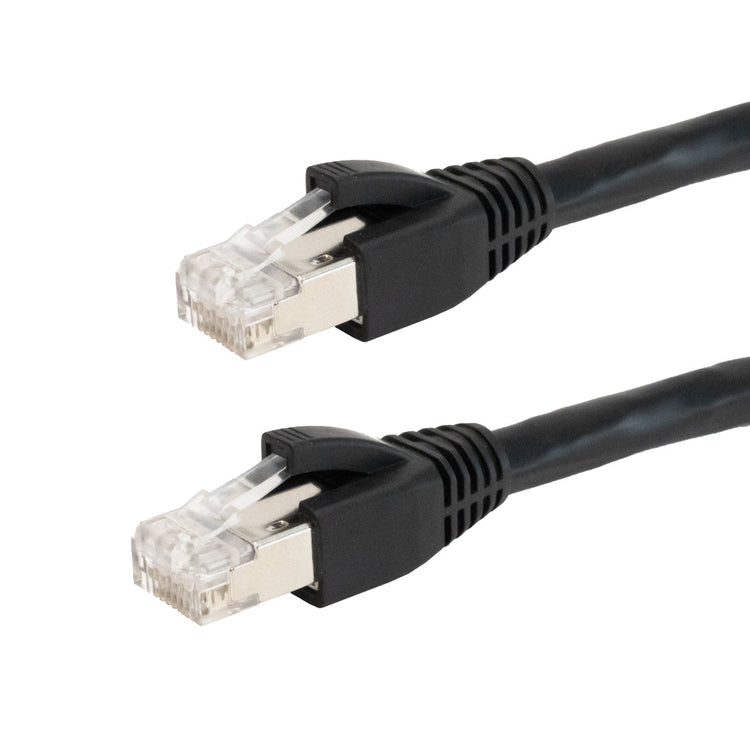

This CAT6A shielded ethernet cable consists of a RJ45 male on one end and a RJ45 male on the other. It is typically used for ethernet network connections such as patch panels, switches and computers to routers. The shielding helps protect against electro-magnetic (EMI) and radio frequency interference (RFI). The cable jacket is also CMP (plenum) fire rated.
TERMS: non-cancelable & non-returnable
|
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. FOIL SHIELDED100% mylar foil shielded pairs is optimal for interference prone areas, and shielded RJ45 connectors offer enhanced isolation.
|
| Physical Characteristics | |
|---|---|
| Connector Plating | Gold Plated 50 Micron |
| Conductor |
Material: Solid Bare Copper Size: 23AWG 0.023''(0.585±0.006mm) |
| Wire Gauge | 23AWG Solid |
| Shielding | F/UTP (Aluminum/Poly Tape)
100% coverage with 25% overlapping |
| Pairs | 4 |
| Insulation | Material: SAMP® FEP Outer Diameter: 0.044" (1.12±0.05mm) PET (20/0.25mm) |
| Jacket Nominal Thickness | 0.0197" (0.50mm) |
| Jacket Outer Diameter | 0.268" +/- 0.012 (6.8 +/- 0.3mm) |
| Fire Rating | CMP/FT6 [Plenum Rated] |
| Jacket Type | PVC |
| Drain Wire | 24AWG Solid Tinned Copper |
| Temperature Rating | -20°C to +75°C |
| Ripcord | Kevlar |
| Electrical Characteristics | |
| Voltage | 30V |
| Capacitance | 5.6nF/100m .Nom |
| Velocity of Propagation | ≥65% |
| DCR Conductor | 9.38 Ohms/100m.Nom |
| D-C Resistance Unbalance | ≦5% |
| Characteristic Impedance | 1-100MHz 100Ohms ±15% 101-250MHz 100Ohms ±22% 251-500MHz 100Ohms ±25% |
| Connectors | |
| Connector A | RJ45 Shielded Long Body Male |
| Connector B | RJ45 Shielded Long Body Male |
| Approvals | |
| c(UL)us | Compliant - Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 2-4 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
