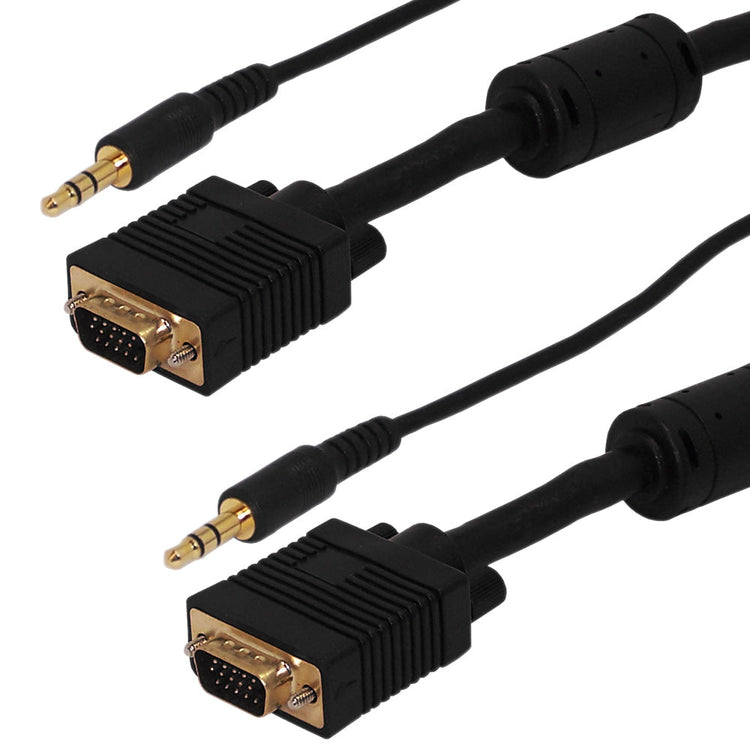

This SVGA cable consists of a HD15 male plus 3.5mm male on one end and a HD15 male plus 3.5mm male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as a VGA monitor.
- Constructed of a combination of 3 mini coax cables and 9 conductors for optimal SVGA video quality
- This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
- Ferrite cores placed at either end of the cable further enhance the video quality
- Fully CL2/FT4 fire rated for in-wall use
Physical Characteristics |
Color | Black |
Connector Plating | Gold |
Wire Gauge - Coax | 3 - 28AWG Mini-Coax |
Wire Gauge - Conductors | 4.5 - 24AWG Pairs |
Wire Gauge - Audio | 2C - 24AWG Conductors |
Cable Diameter | 9.0 mm |
Shielding | 85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
Jacket Fire Rating | CL2/FT4 |
Jacket Material | PVC |
Strain Relief | Molded PVC |
Connector(s) |
Connector A | 1 - SVGA HD15 Male 1 - 3.5mm Male |
Connector B | 1 - SVGA HD15 Male 1 - 3.5mm Male |
Performance |
Resolution | 1600 x 1200px |
Impedance | 75 ohm |
Approvals |
c(UL)us | Approved Cable |
Environmental |
RoHS | Yes |
Reach | Yes |
Packaging Information |
Package Quantity | 1 - Cable |
Warranty Information |
Warranty | Limited Lifetime |
1ft | 3ft | 6ft | 10ft | 15ft | 20ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft |
0.15 lbs | 0.55 lbs | 0.75 lbs | 1.05 lbs | 1.45 lbs | 2.00 lbs | 2.15 lbs | 3.00 lbs | 3.50 lbs | 4.05 lbs | 6.00 lbs | 7.50 lbs |
