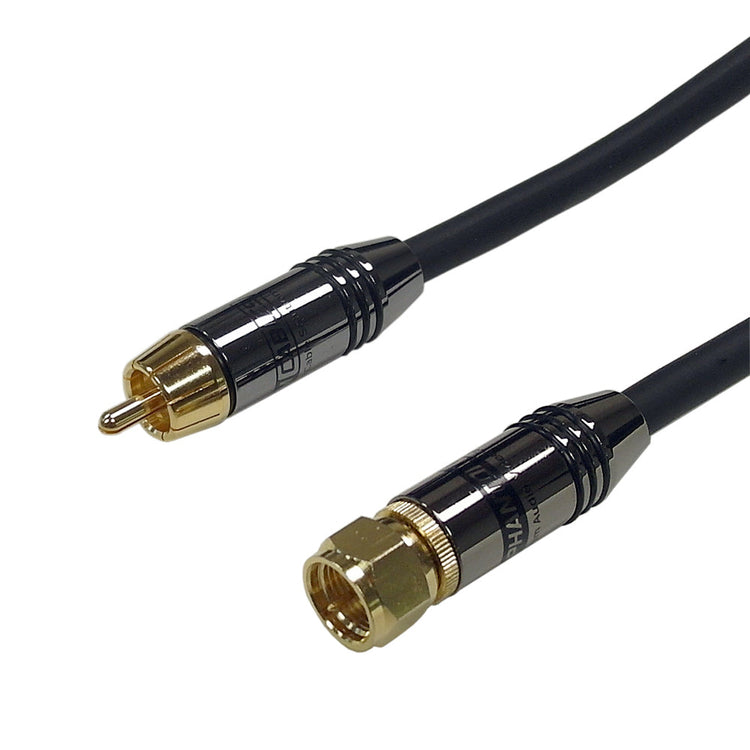

This RG59 cable consists of a RCA male connector on one end and a F-type connector on the other end. It is used to connect a CCTV output to a video display input.
Physical Characteristics | |
---|---|
Color | Black |
Connector Plating | Gold |
Cable Diameter | 6.15 mm |
Wire Gauge | 22AWG Stranded Bare Copper |
Jacket Material | PVC - Polyvinyl Chloride |
Jacket Rating | FT4 - Riser |
Cable Shielding | 100% aluminum/mylar foil, plus a 95% tinned copper braid |
Strain Relief | Metal Shell |
Connector(s) | |
Connector A | F-Type Male |
Connector B | RCA Male |
Performance | |
Impedance | 75ohm |
Capacitance | 18.6 PF/FT |
Velocity of Propagation | 78% |
Approvals | |
c(UL)us | Approved Cable |
Environmental | |
RoHS | Yes |
Packaging Information | |
Package Quantity | 1 |
Warranty Information | |
Warranty | Limited Lifetime |
3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
---|---|---|---|---|---|---|---|---|
0.40 lbs | 0.55 lbs | 0.75 lbs | 1.00 lbs | 1.50 lbs | 2.00 lbs | 2.75 lbs | 4.00 lbs | 5.25 lbs |
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
SKU | Options | Weight |
TV-RCAPH-03 | 3ft | 0.19 lb |
TV-RCAPH-06 | 6ft | 0.34 lb |
TV-RCAPH-10 | 10ft | 0.53 lb |
TV-RCAPH-15 | 15ft | 0.77 lb |
TV-RCAPH-25 | 25ft | 1.25 lb |
TV-RCAPH-35 | 35ft | 1.73 lb |
TV-RCAPH-50 | 50ft | 2.45 lb |
TV-RCAPH-75 | 75ft | 3.65 lb |
TV-RCAPH-100 | 100ft | 4.85 lb |
