Overview

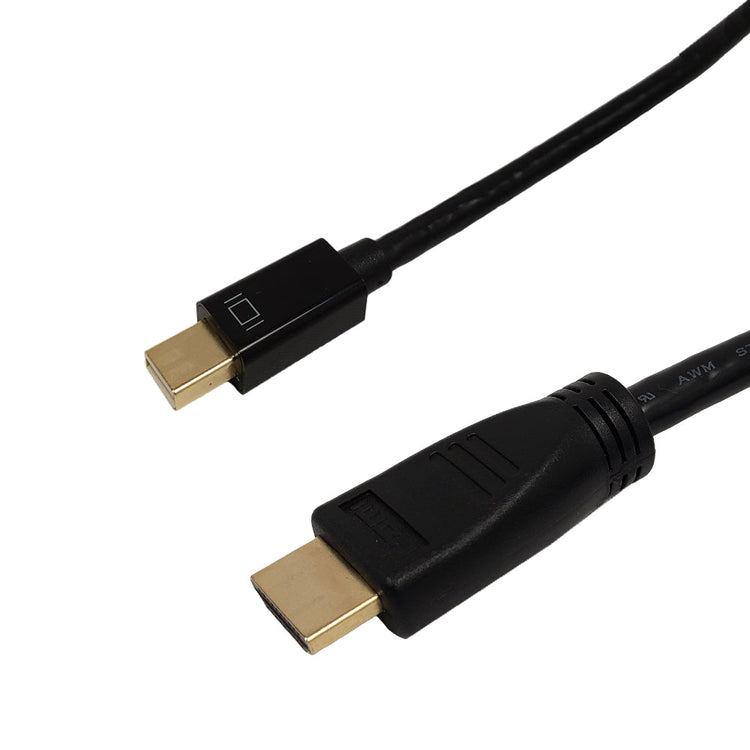

This Mini DisplayPort male to HDMI male cable supports resolutions of Ultra HD 4K x 2K at 60Hz. It is typically used to connect a Mini DisplayPort source (MacBook Pro, MacBook Air, etc.) to a HDMI display ( 4K HD TVs, Projectors, etc.). This cable in uni-directional, therefore it will only work from a DisplayPort source to a HDMI display and not in the reverse direction.
| Ultra High-Definition Resolution This cable supports maximum video resolutions up to a breath-taking Ultra HD 4K x 2K (4096 x 2160) @ 60Hz. Gold Plated Connectors The gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Used in Common Instances This cable can be used in common instances - for example, connecting a MacBook to a TV, at the highest possible resolution available. |
Application
Specifications
Physical Characteristics |
Color | Black |
Connector Plating | Gold |
Wire Gauge | 28 AWG |
Jacket Fire Rating | CL3/FT4 |
Cable Type | Active |
Temperature Rating | 80ºC |
Connectors |
Connector A | HDMI Male |
Connector B | Mini DisplayPort Male |
Performance |
Bandwidth | 18 Gbps |
Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz 1080p@75-144hz 1440p @75-144hz |
3D Support | Yes |
DP Version | v1.2 |
HDMI Version | v2.0 |
Content Protection | HDCP2.2 Compliant |
Built in Ethernet Channel | Yes |
Approvals |
c(UL)us | Approved Cable |
Environmental |
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Packaging Information |
Packaging Quantity | 1 |
Warranty |
Warranty | Lifetime Limited |
3ft | 6ft | 10ft | 15ft |
0.19 lbs | 0.3 lbs | 0.48 lbs | 0.72 lbs |
