Description

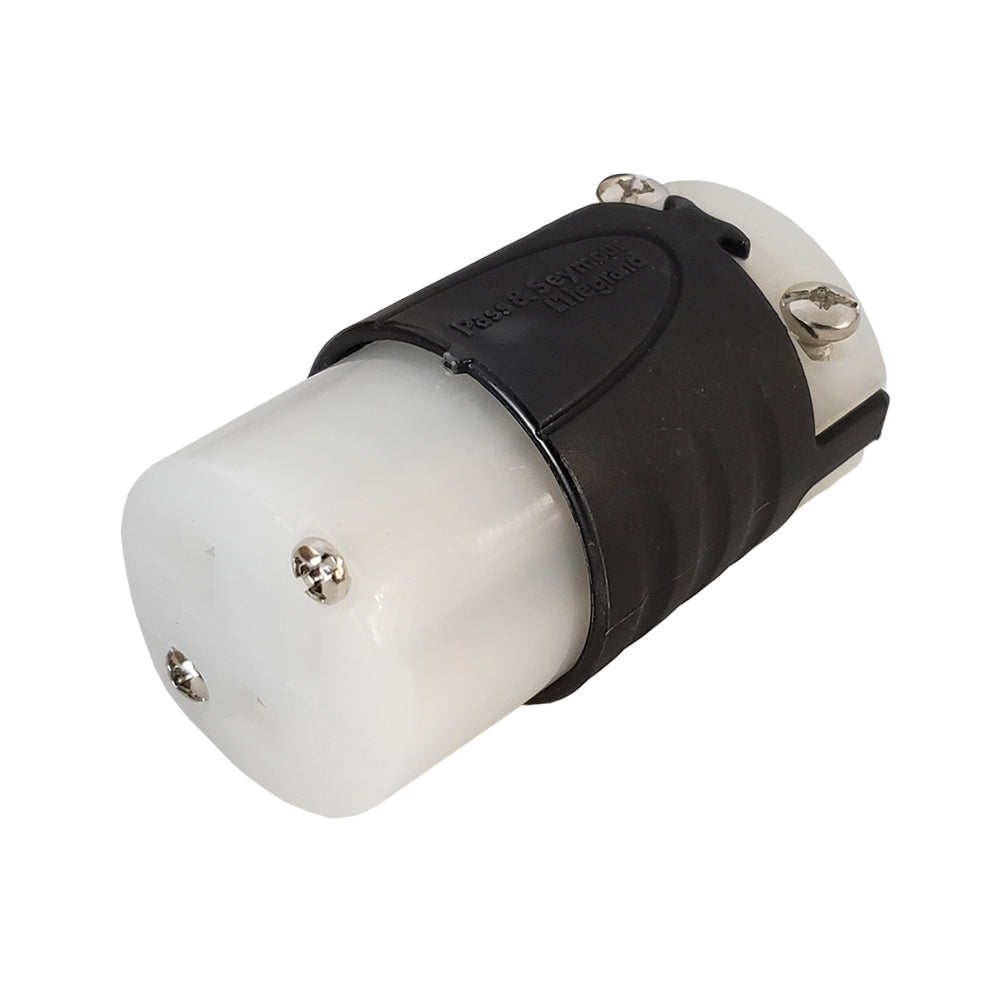

This L21-30R power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics | |
|---|---|
| No. of Poles | 4-Pole |
| No. Of Conductor | 5 Conductor |
| Connectivity | Screw Terminals |
| Material | Polycarbonate |
| Operating Temperature | Maximum continuous 75℃ and Minimum -40℃ without Impact |
| Cable Diameter Range | 3-wire device: 0.325 inch (16/3 SJ Type) to 0.750 inch (10/3 S Type) 4 and 5-wire devices: 0.325 inch (16/4 S Type) to 0.750 inch (10/4 S Type) with inserts 0.700 inch (12/5 S Type) to 1.15 inch (8/5 S Type) without inserts |
| Wire Gauge Compatibility | |
| Pass & Seymour - Legrand Part No. |
L2130C |
| Connectors | |
| L21-30R | Female |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.15 lbs [0.06kg] |
