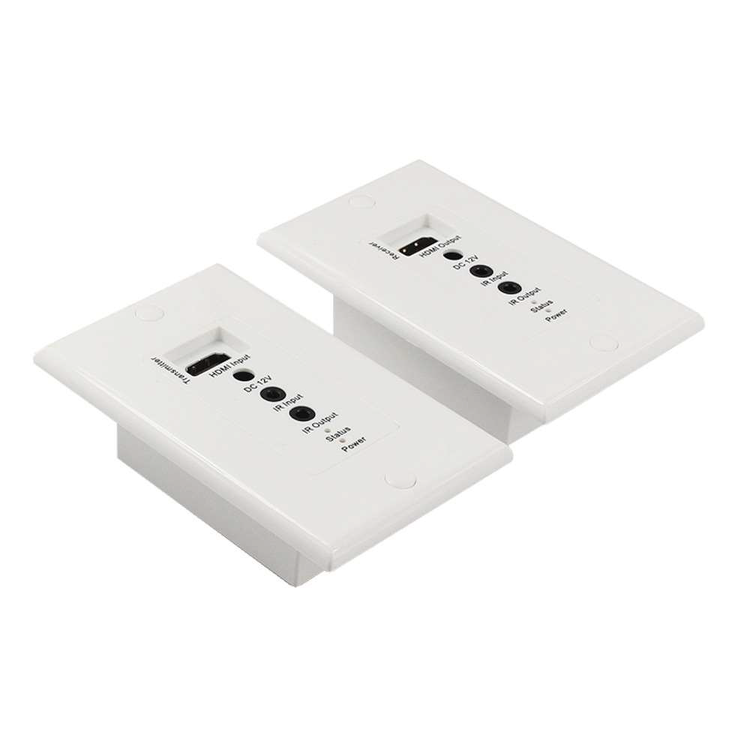

This HDMI single CAT5E/CAT6 wall plate video extender allows you to extend your HD display up to 50 meters and keeps your cables hidden behind walls. Built-in IR extender function allows IR remote control of source devices from remote viewing location by sending IR commands received in the area of the display back to the source devices.Ā
Features
Application
| Physical Characteristics | |
|---|---|
| Color | White |
| Wall Plate Size | Single Gang |
| Dimensions (LxWxH) | Transmitter: 115x70x34mm Receiver: 115x70x34mm |
| Operating Temperature Range | -5ā ~ 35ā |
| Power | |
| Power Supply | DC 12V/1A |
| Power Consumption | 3 Watts (maximum) |
| Connector(s) | |
| Transmitter | HDMI input, IR output (3.5mm), IR input (3.5mm), RJ45Ā Ethernet interface, 12V DC in. |
| Receiver | HDMI output, IR output (3.5mm), IR input (3.5mm), RJ45Ā Ethernet interface, 12V DC in. |
| Performance | |
| Video Format | DTV/HDTV: 480i/ 567i/ 480p/ 567P/ 720p/ 1080i/ 1080p@60Hz 3D video format |
| Video Bandwidth | Maximum TMDS clock frequency 165MHz, 4.95Gbps |
| Transmission Range | 1080P CAT5E: 170ft (50meters), CAT6 200ft (60meters) 720P/1080i CAT5E/270ft (80meters), CAT6 200ft (60meters) |
| Audio | 8-channel, supports Dolby True HD and DTS Master |
| HDMI Interface Standard | HDMI 1.3 standard (HDMI 1.4b 3D function) HDCP 1.2 support EDID |
| Bi-direction remote | Compliant |
| CEC pass through | Compliant |
| EDID Call Back | Compliant |
| Indicator Light | Power Green, video link yellow |
| Remote IR | 38KHz(Model A) or 20-60KHz(Model B) |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 1 lbs [0.5kg] |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |
| 2 - DC 12V/1A Power Adapter 2- IR Blaster (with 3m cable) 2 - IR Receiver Cables (with 3m cable) 2 - Single Gang Decora Wall Plates White with hardware |
|
| 1 - Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
