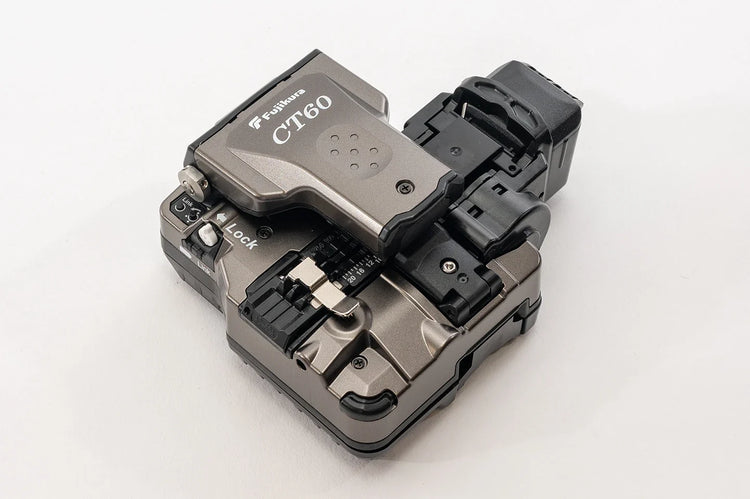

This Fiber Cleaver is engineered for precision and durability, offering motorized blade rotation and Bluetooth connectivity for seamless integration with compatible Fujikura splicers. Designed to support both single and ribbon fibers, it delivers consistent cleave quality with minimal maintenance and an impressive blade life.
|
|
One-handed OperationDesigned for ergonomic use, the CT60 supports one-handed operation with a simplified cleaving mechanism and a toggle button for flexible arm control. Motorized Blade RotationThe CT60 features fully automatic blade rotation, ensuring consistent cleave quality and extending blade life up to 60,000 cleaves. Bluetooth ConnectivitySeamlessly integrates with compatible Fujikura fusion splicers via Bluetooth, enabling smart blade management and maintenance tracking directly through the splicer. Dual CleavingCapable of cleaving two optical fibers simultaneously, the CT60 significantly improves efficiency for technicians working with ribbon or paired fibers. Expanded Blade PositionsWith 28 cleaving positions, the CT60 eliminates the need for blade height adjustments, allowing finer control and easier maintenance. Easy MaintenanceThe CT60 fiber cleaver has a user-replaceable blade, so there’s no need to send the device to a service center for blade or clamp replacement. Drop-Tested DurabilityEngineered to withstand drops up to 30 inches, the CT60 sets a new standard for ruggedness in fiber cleavers, making it ideal for field use. Active Blade Management TechnologyAutomatically advances blade positions based on cleave count or quality, ensuring optimal performance without manual intervention. Versatile Fiber CompatibilitySupports single-mode and multimode fibers, including single and ribbon configurations up to 16 fibers, with a wide range of coating diameters and fiber holders. Compact and Lightweight DesignWith a palm-sized design and a weight of just 280 g (including battery), the CT60 is portable and easy to handle in any environment. User-Replaceable Blade and ComponentsSimplified maintenance allows users to replace blades and clamps in the field, reducing downtime and service costs. |
| Physical Characteristics | |
|---|---|
| Fiber Count | Single, up to 16 fibers |
| Fiber Type | Singlemode optical fiber Multimode optical fiber |
| Coating Diameter | Max. 900 µm coating diameter |
| Cladding Diameter | 125 µm |
| Cleave Length | Fiber plate: ≤ 250 µm – 5 ~ 20 mm, 900 µm – 10 ~ 20 mm Fiber holder: Approx. 10 mm |
| Cleave Angle | Single fiber: Avg. 0.3 to 0.9 degrees Fiber ribbon: Avg. 0.3 to 1.2 degrees |
| Dimensions (W x D x H) | Approx. 113mm x 92mm x 54mm |
| Blade rotation | Motorized rotation Manual rotation dial |
| Blade Life | Approx. 60,000 fiber cleaves |
| Temperature | Operate: -10 to 50°C Storage: -40 to 80°C |
| Humidity | Operate: 0 to 95%RH non-condensing Storage: 0 to 95%RH non-condensing |
| Battery | 2x batteries LR03/AAA dry battery (not included) |
| Wireless interface | Bluetooth 5.2 |
| Screw hole for tripod | 1/4-20UNC |
| Manufacturing Information | |
| AFL Part Number | S018654 |
| Approvals | |
| UKCA | Compliant |
| Environmental | |
| CE | Compliant |
| RoHS | Compliant |
| Warranty Information | |
| Warranty | 1 Year Manufacturer Warranty |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.64 lbs |
