Description

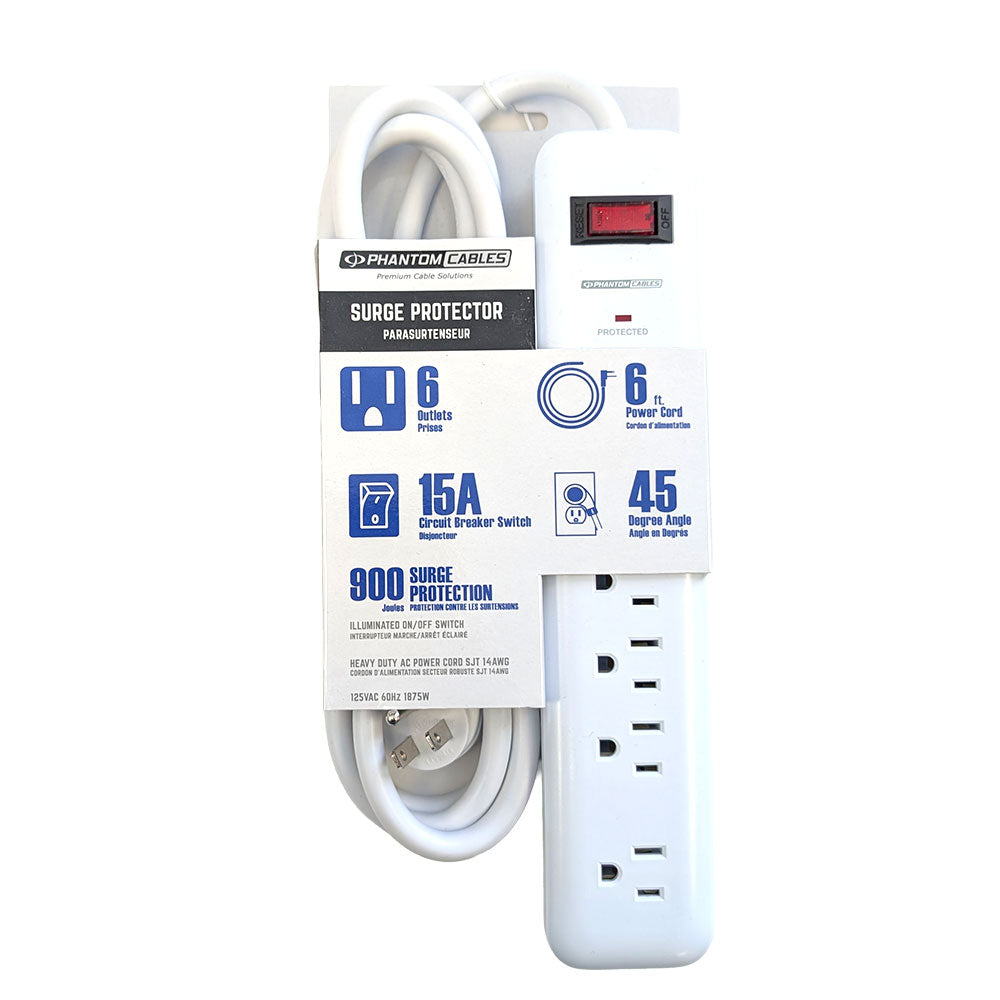

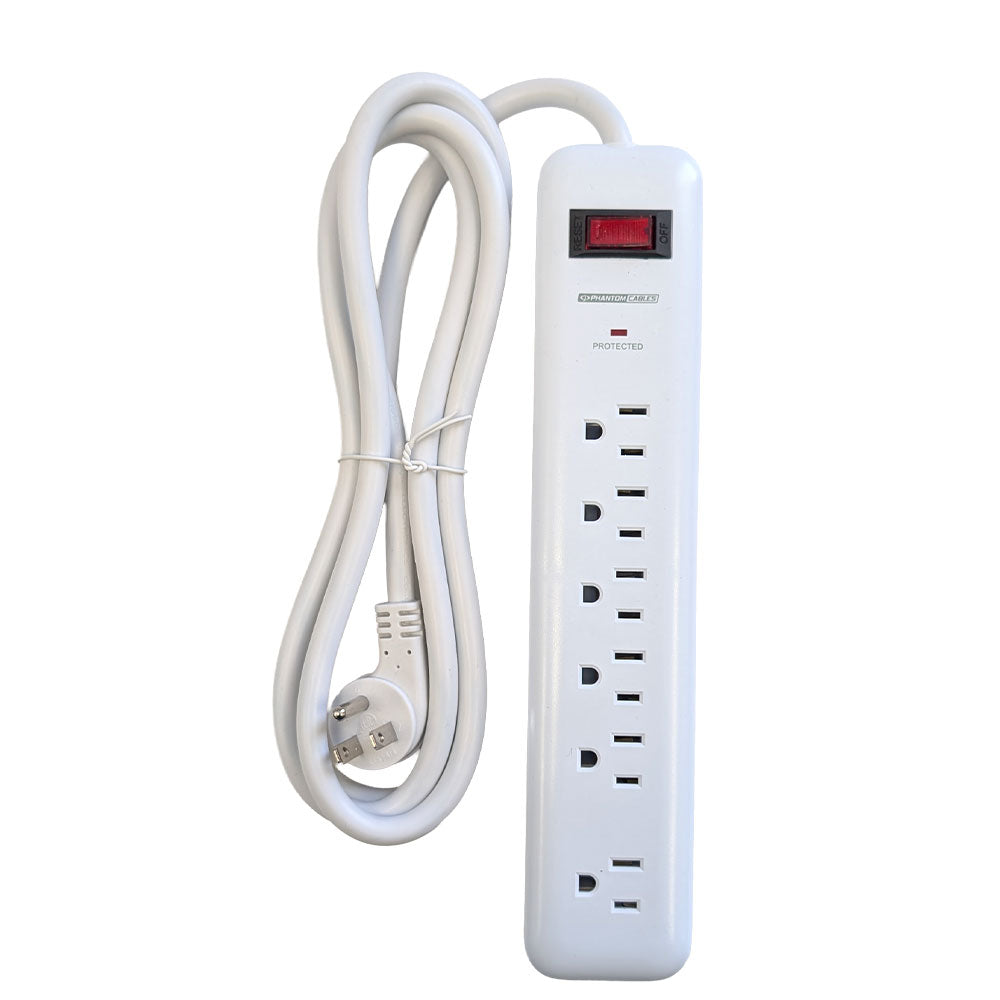

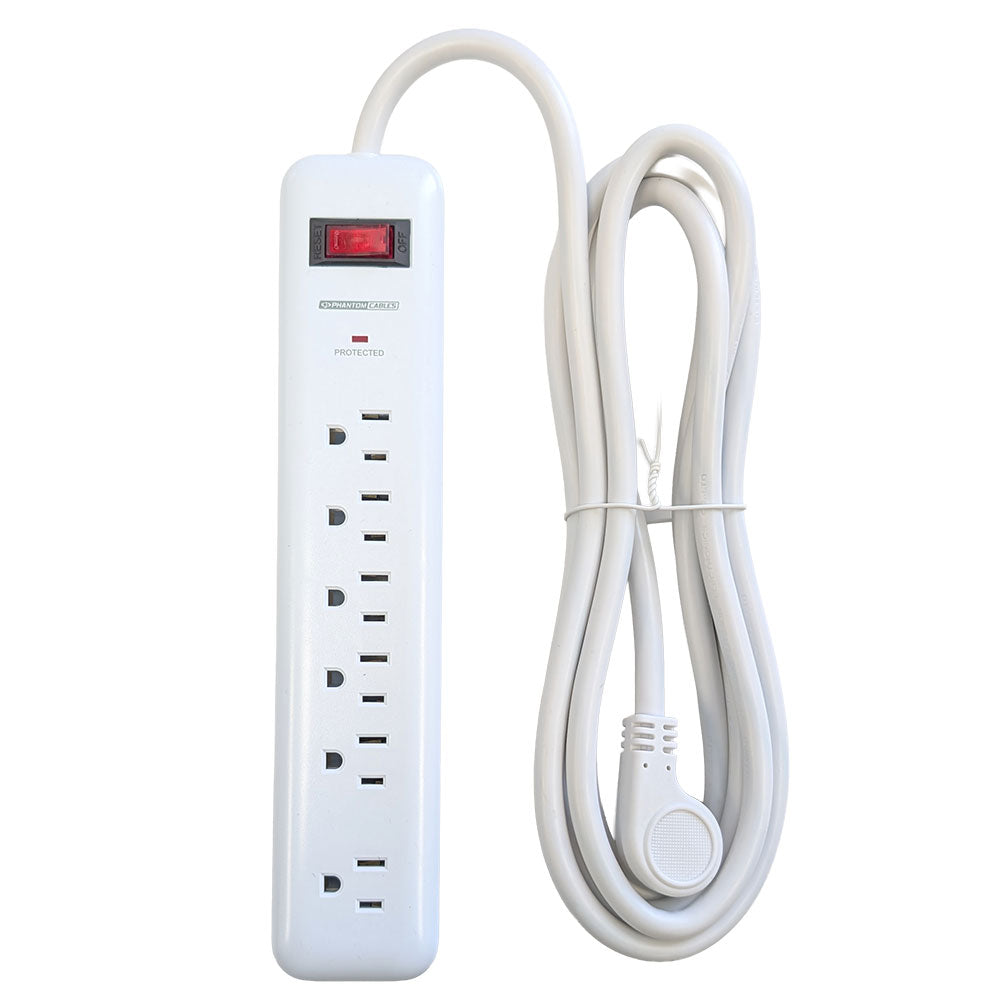

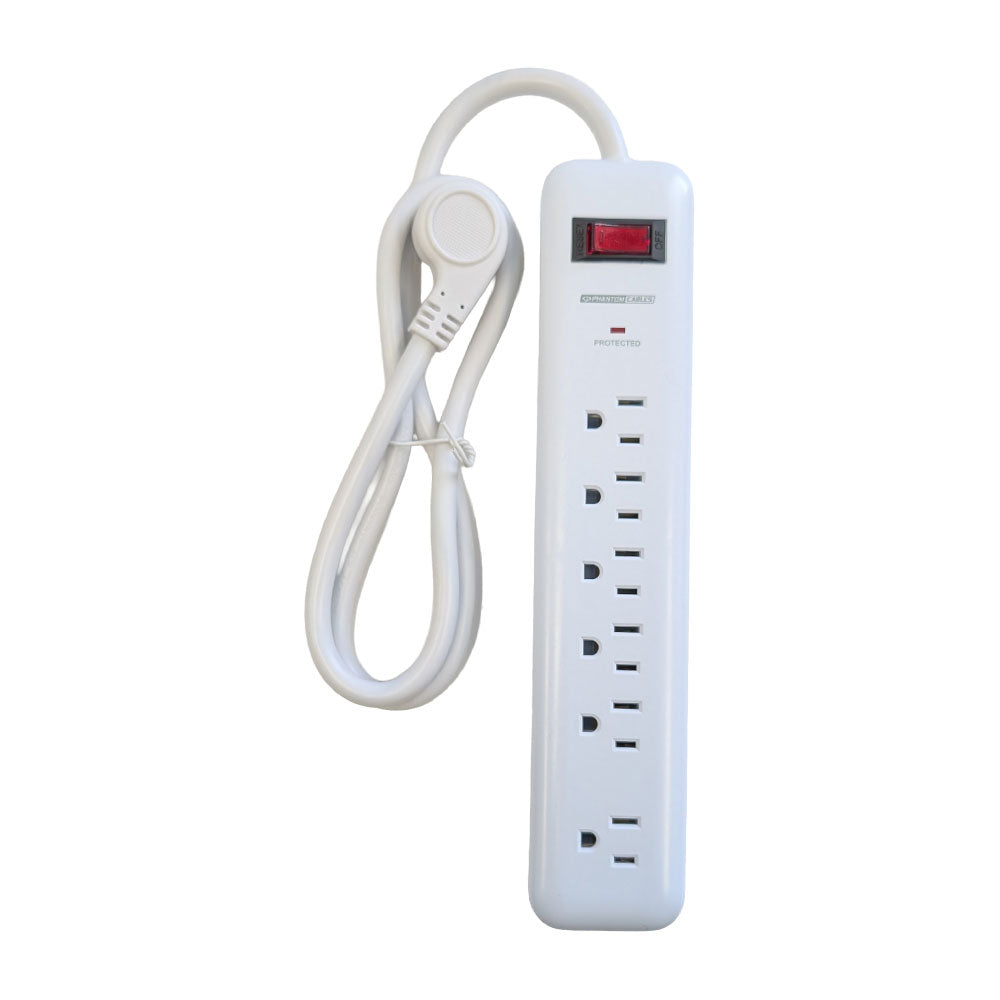

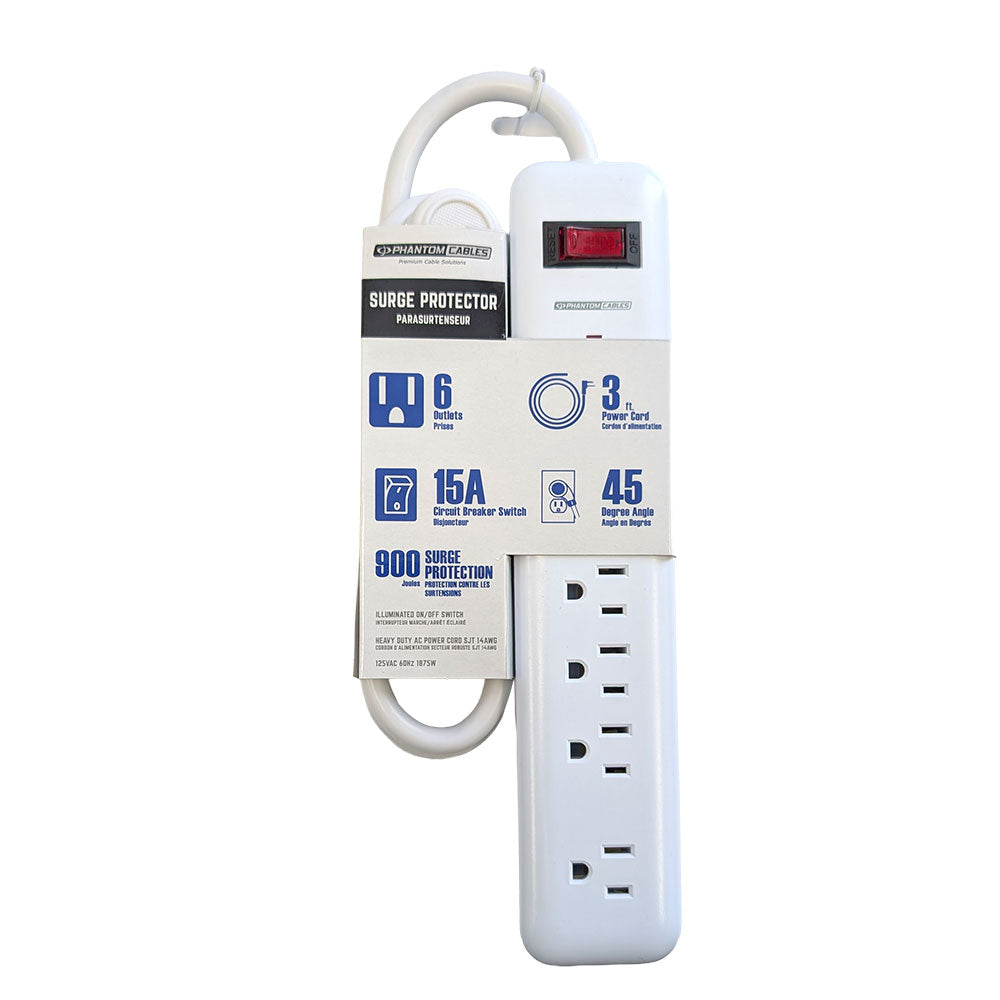

This 6 outlet surge protector available in variety cord lengths, and plugs into a standard power outlet. The protected/grounded indicator lights show if surge protection is working and if it is plugged into a properly grounded outlet. This can be used with most small home and office appliances.
| Physical Characteristics | |
|---|---|
| Cable Length | 3ft/ 6ft/ 10ft/ 15ft/ 25ft |
| Color | Black |
| Housing Material | ABS / Plastic UL94V-0 |
| Cord Type | ETL/cETL SJT 14AWG/3C 60℃ |
| Plug Type | NEMA 5-15P, 45° Plug |
| Electrical Rating |
Maximum Input Voltage (VAC): 125VAC Nominal Input Frequency (Hz): 60Hz Maximum Output Power (Watts): 1875W Maximum Line Current (Amps): 15A |
| Circuit Breaker | 15A 125V |
| Joules | 900J |
|
AC outlet |
6 Outlets |
|
Operating Temperature |
-0 to 40 degrees Celsius |
|
Conditions of Operation |
Indoor only |
| Circuit Breaker | |
| Switch | 15A Breaker/switch Overload protection with switch On/off/reset switch on the top automatically switches off when an overload occurs. |
| Light Color | Red |
| Connectors | |
| Power Outlets | 6 x 5-15R Standard Size Outlets |
| Surge Protection & Filtering | |
| Surge Indicator (Protected) | Red LED Indicator (The "Protected" indicator light turns red to let you know your equipment is secure while the "Grounded" indicator warns you when your outlet is not properly grounded.) |
| Ground Indicator (Grounded) | NA |
| Max. Spike Voltage | 6000V |
| Max. Surge Current | 3000A |
| Clamping Response Time | < 1 nanosecond |
| Max. Noise Filtering Level | 150KHz ~ 100MHz up to 40dB |
| EMI/RFI (X-Cap) | Yes (An EMI/RFI filter reduces AC line noise and radio frequency interference.) |
| Approvals | |
| c(ETL)us | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| 3ft | 6ft | 10ft | 15ft | 25ft |
|---|---|---|---|---|
| 0.76 lbs | 1.06 lbs | 1.55 lbs | 2.10 lbs | 3.08 lbs |
