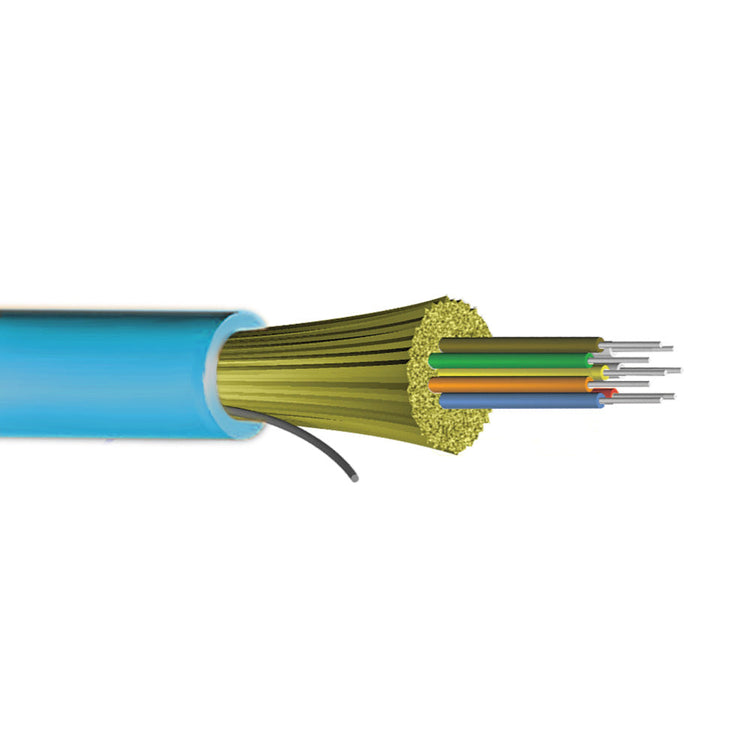

This bulk OM3 fiber cable is indoor plenum rated and has a tight buffer construction. Ā It is OFNP rated for plenum and general inside plant environments.
Features
- 900Ī¼m Tight Buffers
- Aramid yarn strength members
- Exclusive use of CorningĀ® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
Physical Characteristics
|
Color |
Aqua |
Fiber Optic Type |
OM3 50 micron Multimode Plenum Indoor Cable |
Fiber Count |
6-Strand/ 12-Strand/ 24-Strand |
Glass Fiber |
Corning ClearCurve |
Outer Jacket Material/Tight Buffer Material |
Flame Retardant PVC |
Strength Member |
Aramid Yarn |
Weight |
57 lbs / km : 6-Strand 81 lbs / km : 12-Strand 138 lbs / km : 24-Strand
|
Nominal Outer Diameter |
4.8mm : 6-Strand 5.8mm : 12-Strand 7.8mm : 24-Strand
|
MinimumĀ Bend Radius, Installation |
7.2cm : 6-Strand 8.7cm : 12-Strand 11.7cm : 24-Strand
|
Minimum Bend Radius, Operation |
4.8cm : 6-Strand 5.8cm : 12-Strand 7.8cm : 24-Strand |
Operating Temperature |
0 deg C ~ +70 deg C |
Storage Temperature |
-40 deg C ~ +70 deg C |
Wavelength |
850 / 1300nm |
Maximum Attenuation |
3.0 / 1.0 dB/km |
LinkĀ Length |
550m (10Gb/s@850nm) |
Bandwidth (EMB High Performance) |
2000 @850nm MHz.kmĀ |
Certification(s)
|
UL |
Yes |
Product Support
|
RoHS |
Yes |
Country of Origin |
USA |
Packaging Information
|
Package Quantity |
1 |
Product Weight |
0.057 lbs/m : 6-Strand 0.081 lbs/m : 12-Strand 0.138 lbs/m : 24-Strand
|
