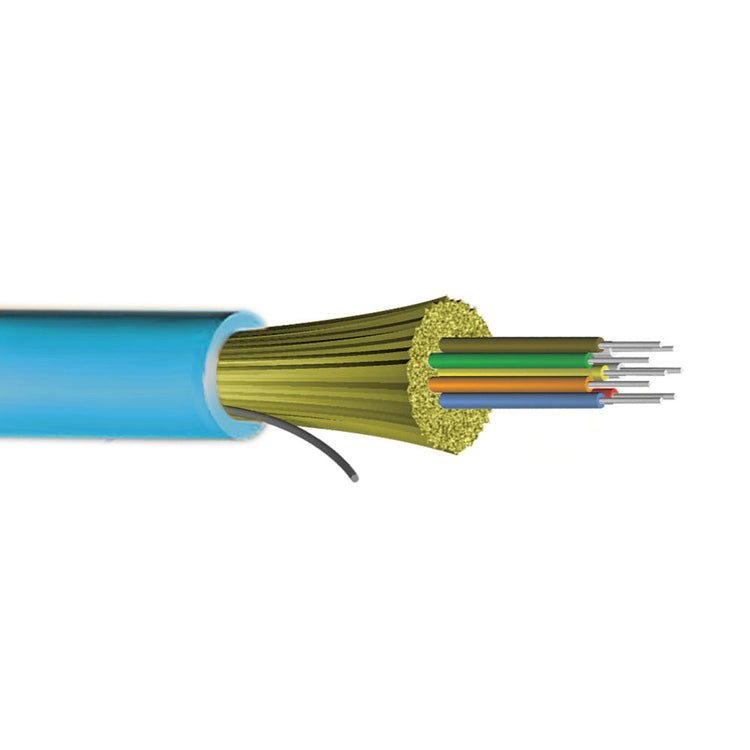

This bulk OM3 fiber cable is indoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments.
Features
900Ī¼m Tight Buffers
Aramid yarn strength members
Exclusive use of CorningĀ® optical fibers
Jacket print ensures product identification and fiber compatibility
Durable jacket offers added protection during installation and in rugged use applications
Physical Characteristics
Color Aqua
Fiber Optic Type OM3 50 micron Multimode Plenum Indoor Cable
Fiber Count 6-Strand/ 12-Strand/ 24-Strand
Glass Fiber Corning ClearCurve
Outer Jacket Material/Tight Buffer Material Flame Retardant PVC
Strength Member Aramid Yarn
Weight 57 lbs / km : 6-Strand
81 lbs / km : 12-Strand
138 lbs / km : 24-Strand
Nominal Outer Diameter 4.8mm : 6-Strand
5.8mm : 12-Strand
7.8mm : 24-Strand
Minimum Bend Radius, Installation 7.2cm : 6-Strand
8.7cm : 12-Strand
11.7cm : 24-Strand
Minimum Bend Radius, Operation 4.8cm : 6-Strand
5.8cm : 12-Strand
7.8cm : 24-Strand
Operating Temperature 0 deg C ~ +70 deg C
Storage Temperature -40 deg C ~ +70 deg C
Wavelength 850 / 1300nm
Maximum Attenuation 3.0 / 1.0 dB/km
Link Length 550m (10Gb/s@850nm)
Bandwidth (EMB High Performance) 2000 @850nm MHz.km
Certification(s)
UL Yes
Product Support
RoHS Yes
Country of Origin USA
Spec Sheets
Download attachment
REACH Certificate - BK-F24CP-OM3-P-T
RoHS Certificate - BK-F24CP-OM3-P-T
REACH Certificate - BK-F6CP-OM3-P-T
RoHS Certificate - BK-F6CP-OM3-P-T
REACH Certificate - BK-F12CP-OM3-P-T
RoHS Certificate - BK-F12CP-OM3-P-T
