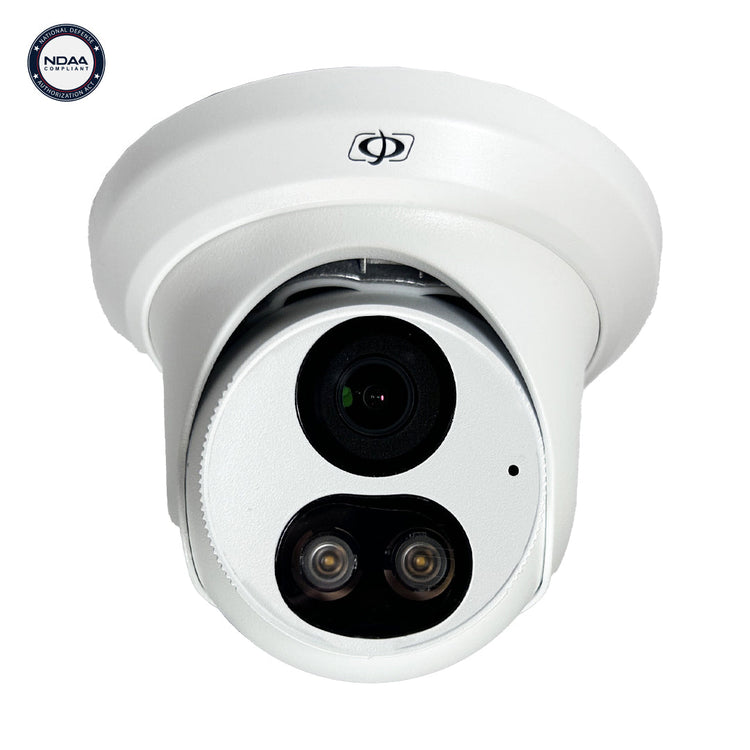

This 5MP color night vision, indoor/outdoor, IP based turret camera features maximum light gathering capability to provide full color imaging in extremely dark settings. The camera is available in a 2.8mm or 4mm fixed lens which delivers a 109° or 94° horizontal field of view respectively. Its maximum resolution is 2688 x 1620 at 30 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use.
Features
|
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Standalone Camera Setup
Camera | |
---|---|
Image Sensor | 1/2.7" (5 MP) progressive scan CMOS |
Minimum Illumination | Color: 0.001 lux @ (F1.0, AGC on) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Adjustment Angle | Pan: 3° to 360°, Tilt: 0° to 80°, Rotate: 3° to 360° |
S/N | >56dB |
WDR | 120dB |
Lens | |
Lens Type | 2.8mm @F1.0 and 4.0mm @F1.0 |
Angle of View (H) | 102° (2.8mm), 80.2° (4mm) |
Angle of View (V) | 53.4° (2.8mm), 43.0° (4mm) |
Angle of View (O) | 121° (2.8mm), 94.7° (4mm) |
DORI | |
DORI Distance | 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify 4.0mm Lens, 90.0m Detect, 36.0m Observe, 18.0m Recognize, 9.0m Identify |
Illuminator | |
LED Distance | Up to 30m (98ft) |
LEDs Number | 2 |
LED On/Off Control | Auto/Manual |
Video | |
Video Compression | Ultra 265, H.265, H.264, MJPEG |
H.264 Code Profile | Baseline profile, Main profile, High profile |
Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
Video Bit Rate | 128 Kbps~16 Mbps |
U-code | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
Video Stream | Triple streams |
Image | |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping | N/A |
HLC | Supported |
BLC | Supported |
Defog | Digital Defog |
Intelligent | |
Smart Intrusion Prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
Face Capture | Support |
Statistical Analysis | People counting, supports tripwire people counting and area people counting |
Events | |
Basic Detection | Motion detection, Tampering alarm, Audio Detection |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio | |
Audio Compression | G.711 |
Audio Bitrate | 64 Kbps |
Suppression | Supported |
Sampling Rate | 8KHz |
Storage | |
Edge Storage | Micro SD, up to 256GB |
Network Storage | ANR, NAS(NFS) |
Network | |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
Client | EZStation EZView EZLive |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
Interface | |
Network | 1 * RJ45 10M/100M Base-TX Ethernet |
Built-in Mic | Supported |
Audio I/O, Alarm I/O, RS485, Built-in Speaker, WIFI, Video Output | N/A |
Certification | |
EMC | FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
Safety | IEC 62368-1 EN 62368-1 UL 62368-1 |
Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
Protection | Ingression protection: IP67 (IEC 60529-2013) |
NDAA Compliant | Yes |
General | |
Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Power |
DC 12V±25%, |
Power Interface | Ø 5.5mm coaxial power plug |
Surge Protection | 4KV |
Reset Button | N/A |
Material | Metal |
Dimensions (Ø x H) |
Φ110.5 x 94.1mm (Ø4.4” x 3.7”) |
Weight | 0.97 lbs [0.44kg] |
Phantom Camview iOS App
Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
