Overview

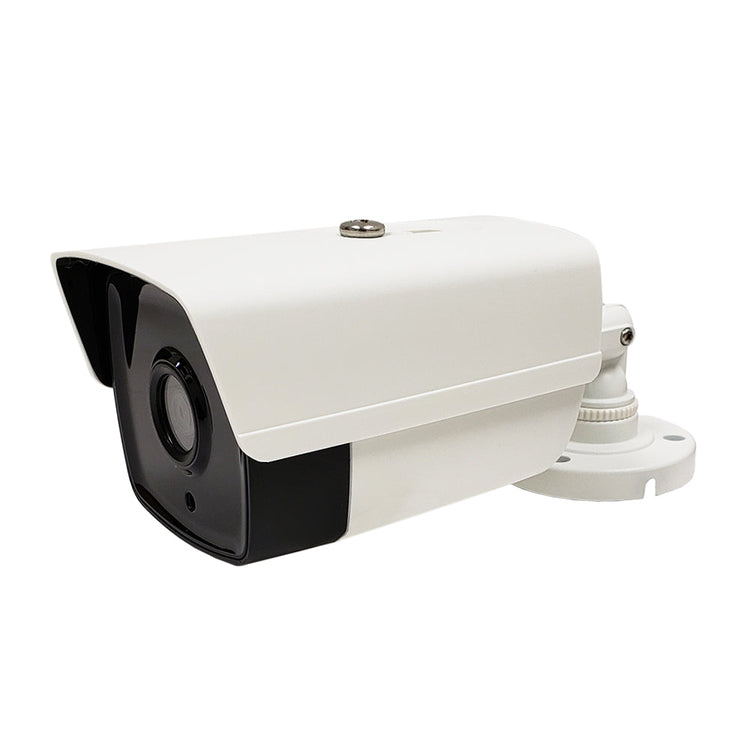

This 5MP indoor/outdoor, TVI based bullet camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.7 mm fixed lens which delivers 85.5° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.

Features

• 5 MP high performance COMS
• 2560 — 1944 resolution
• 2.8 mm fixed lens
• EXIR 2.0, smart IR, up to 40 m IR distance
• OSD menu, 2D DNR, DWDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (UTC-C)

Application

Camera Image Sensor 2.0 MP progressive scan CMOS Signal System PAL/NTSC Frame Rate PAL: 1080p @ 25 fps; NTSC: 1080p @ 30 fps Resolution 1920 (H) x 1080 (V) Minimum Illumination Color: 0.005 lux @ (ƒ/1.2, AGC on), 0 lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s Slow Shutter Maximum 16 times
Lens 2.7 mm to 13 mm motorized vari-focal lens Horizontal Field of View
32.1° to 103° Lens Mount ’‚¬14 Day and Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt:0° to 90°, rotate: 0° to 360° Synchronization Internal synchronization WDR (Wide Dynamic Range) > 120 dB Menu AGC Supported Day and Night Mode Auto/Color/BW (Black and White) White Balance ATW/MANUAL Privacy Mask ON/OFF, 4 programmable privacy masks Motion Detection 4 programmable motion areas Backlight Compensation WDR/BLC/HLC/OFF 3D DNR (Digital Noise Reduction) Level 1 to 10 Language English Functions Brightness, sharpness, mirror, Smart IR Interface Video Output 1 HD analog output General Operating Conditions -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) Power Supply 12 VDC ± 25%, 24 VAC ± 25% Power Consumption Maximum 9 W Ingress Protection IP67 Material Metal and Plastic IR Range Up to 130 ft (40 m) Communication Up-the-Coax, Protocol: HIKVISION-C (TVI output) Dimensions 3.62" x 3.5" x 3.34" (92 mm x 89 mm x 269.6 mm) Weight Approximately 1.98 lbs (900 g) Approvals c(UL)us Yes CE Yes FCC Yes ONVIF Yes

Compatible Mounts

CA-B1102-WH

Junction Box Mounting Bracket for IP Compact Dome & TVI Bullet Cameras - White

Compatible Baluns

VE-BNC-006	BNC Passive Video Extender - RJ45 (1000ft)
VE-BNC-009	BNC Balun - 1000ft Passive Video Extender - Push Button
VE-BNC-010	BNC Balun - 1000ft Passive Video Extender - Screw Down
VE-BNC-011	BNC + Power Balun - 1000ft Passive Video Extender - RJ45

Compatible DC Power Supplies

PDC-12V1A-01	DC Power Supply - Input 120V ~ 240V - Output 12V 1A - c(UL)us
PDC-12V5A-04	DC Power Supply 4CH - Input 120V ~ 240V - Output 12V 5A - c(UL)us
PDC-12V10A-09	DC Power Supply 9CH - Input 120V ~ 240V - Output 12V 10A - c(UL)us
PDC-12V18A-18	DC Power Supply 18CH - Input 120V ~ 240V - Output 12V 18A - c(UL)us

Compatible DC Power Connectors

CN-DCM-S	DC Power Connector Male 2.1mm x 5.5mm Screw Down
CN-DCM	DC Power Connector Male 2.1mm x 5.5mm Plastic Shell
CN-DCM-8IN	DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG)

Compatible BNC Connectors

CN-CBNCM-59-10	BNC Male Compression Connector for RG59 - Pack of 10
CN-CBNCM-59-10PL	BNC Male Compression Connector for RG59 Plenum - Pack of 10
CN-30-734A	BNC Male Crimp Connector for RG59 (734A)
CN-30-RG59P	BNC Male Crimp Connector for RG59 Plenum Cable
CN-30-S	BNC Male Screw Down Connector, 75 Ohm
CN-TBNC-59	BNC Male Twist-On Connector for RG59
