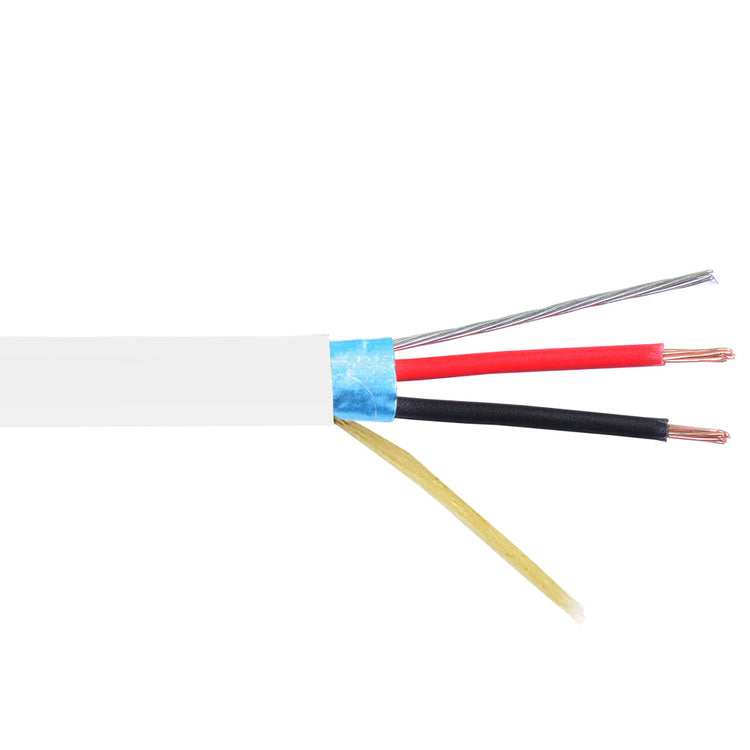

This 2 conductor 16AWG stranded shielded control cable ensures reliable performance in automation and control systems. It provides superior protection against signal interference, making it the ideal choice for industrial control panels, automation infrastructure, and commercial systems. Packaged in a 1000ft easy-pull box, this cable is engineered for seamless installation, featuring a durable PVC jacket and a built-in ripcord for efficient stripping.
Features
Reliable Signal Integrity: Features 110% overall foil shielding to effectively minimize electromagnetic interference (EMI) and crosstalk.
Built for Durability: Constructed with 16AWG stranded copper conductors and a robust PVC jacket, ensuring longevity in diverse operating temperatures (-20°C to +75°C).
CMR Riser Rated: Designed to meet safety standards for vertical installation in walls and risers, providing compliance and peace of mind for commercial projects.
Easy Installation: The 1000ft pull-box design prevents tangles and streamlines deployment, while the integrated ripcord allows for quick and clean jacket removal.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] Pull Box |
| Jacket Color | White |
| Number of Conductors | 2 Conductors (Red/Black) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Stranding | 65*34AWG(65*0.16MM) |
| Nominal Jacket thickness | 0.45mm |
| Nominal Overall Diameter | 5.3mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 2.2 mm |
| Wire Gauge | 16 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Stranded Copper |
| Ripcord | Yes |
| Shielding |
Overall Foil Shielded 110% |
| Drain Wire | 7*0.2mm Tinned Copper |
| Operating Temperature | -20℃ ~ +75℃ |
| Before Tensile Strength | ≥13.8 Mpa |
| Aging Elongation | ≥100% |
| Aging Condition | 100x168ºCxhrs |
| After Tensile Strength | ≥85%Mpa of unaged |
| Aging Elongation | ≥50% of unaged |
| Cold Bend | No Crack (-20±2º Cx4hrs) |
| Approvals | |
| c(ETL)us | Compliant |
| ISO 9001 | Compliant |
| ISO 14001 | Compliant |
| ISO 45001 | Compliant |
| Environmental | |
| RoHS | Compliant |
| REACH | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 32.95 lbs |
