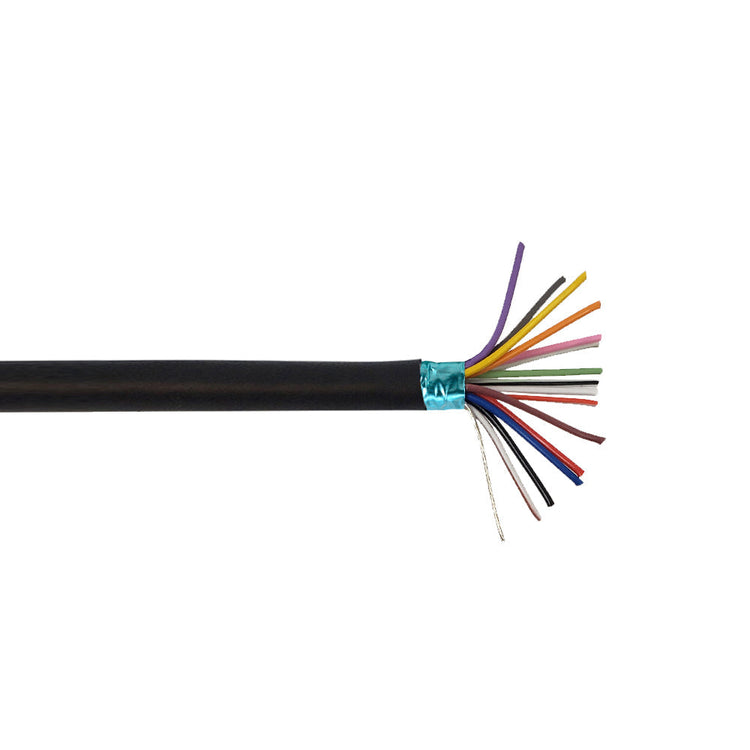

This bulk data cable is 1000ft in length and consists of 15 conductors of 24 gauge stranded wire. It is typically used to interconnect RS-232 data applications.
| Physical Characteristics |
| Cable Length |
1000 foot [304m] |
| Color |
Black |
| Cable
OD
|
5.20mm |
| Number of Conductors |
15 Conductors |
| Wire Gauge |
24AWG |
| Conductor Material |
100% Bare Copper |
| Insulation Diameter |
1.10±0.05mm |
| Insulation Thickness |
0.25mm |
| Drain Construction |
7/0.200±0.008mm |
| Jacket Material |
PVC - Polyvinyl Chloride |
| Jacket OD |
6.50±0.15 mm |
| Jacket Rating |
CMR/CL3/FT4 [Riser Rated] |
|
Insulation Thickness |
0.51mm |
| Cable Shielding |
100% Mylar Foil |
| Temperature Rating |
80℃ |
| Voltage Rating |
30V |
| Insulation Resistance |
100 M (OHMS*KM MIN at 20℃) |
| Approvals |
| c(UL)us |
No |
| Environmental |
| RoHS |
Compliant |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
35.2 lbs |
