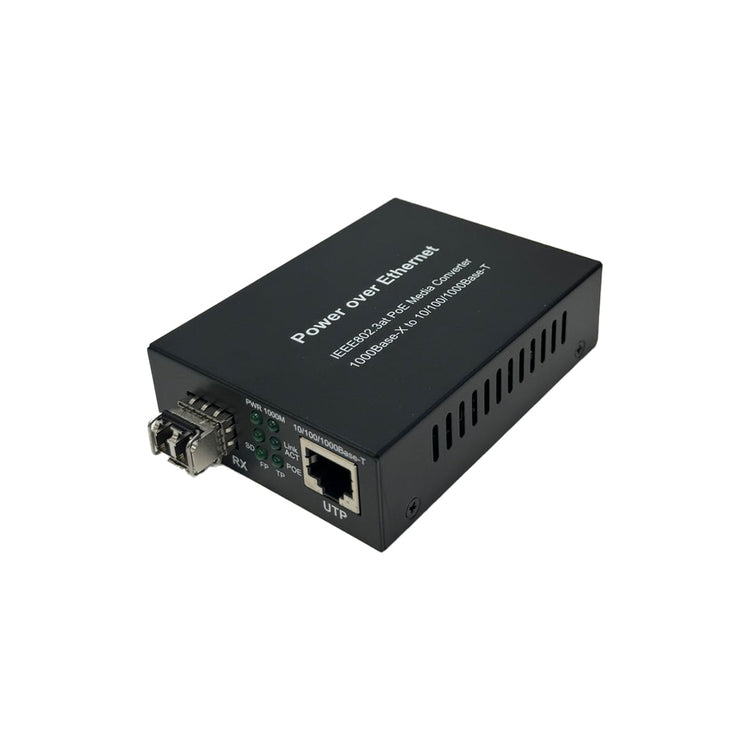

This multimode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 500m over a multimode LC fiber optic cable with PoE+. The converter can be used as a standalone unit or in pairs.
Features
| Physical Characteristics | ||
|---|---|---|
| Color | Black | |
| Dimensions | 94mm x 70mm x 26mm (L x W x H) | |
| Housing | Metal | |
| Operating Temperature | -20℃ ~ 60℃ | |
| Storage Temperature | -20℃ ~ 70℃ | |
| Relative Humidity | 5% to 90% (non-condensation) | |
| Standards | IEEE802.3 10Base-T | |
| Power | ||
| Power Supply | DC47 ~ 57V | |
| PoE Power Output | DC 52V, Max. 30W | |
| Power Pin Assignment | 1/2 3/6 | |
| Connectors | ||
| Fiber Connector | LC | |
| Ethernet Connector | RJ45 UTP | |
| Performance | ||
| Referenced Transmission Distance | 500m | |
| Data Forward Rate | 10Mbps, 100Mbps, 1000Mbps | |
| Working Mode | Full duplex/ Half duplex | |
| Wavelength | Multimode: 850nm | |
| LED | PWR (power LED) | |
| Certifications | ||
| CE | Compliant | |
| FCC | Compliant | |
| RoHS | Compliant | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 1.61 lbs [0.73kg] | |
| Warranty Information | ||
| Warranty | 3 Year | |
