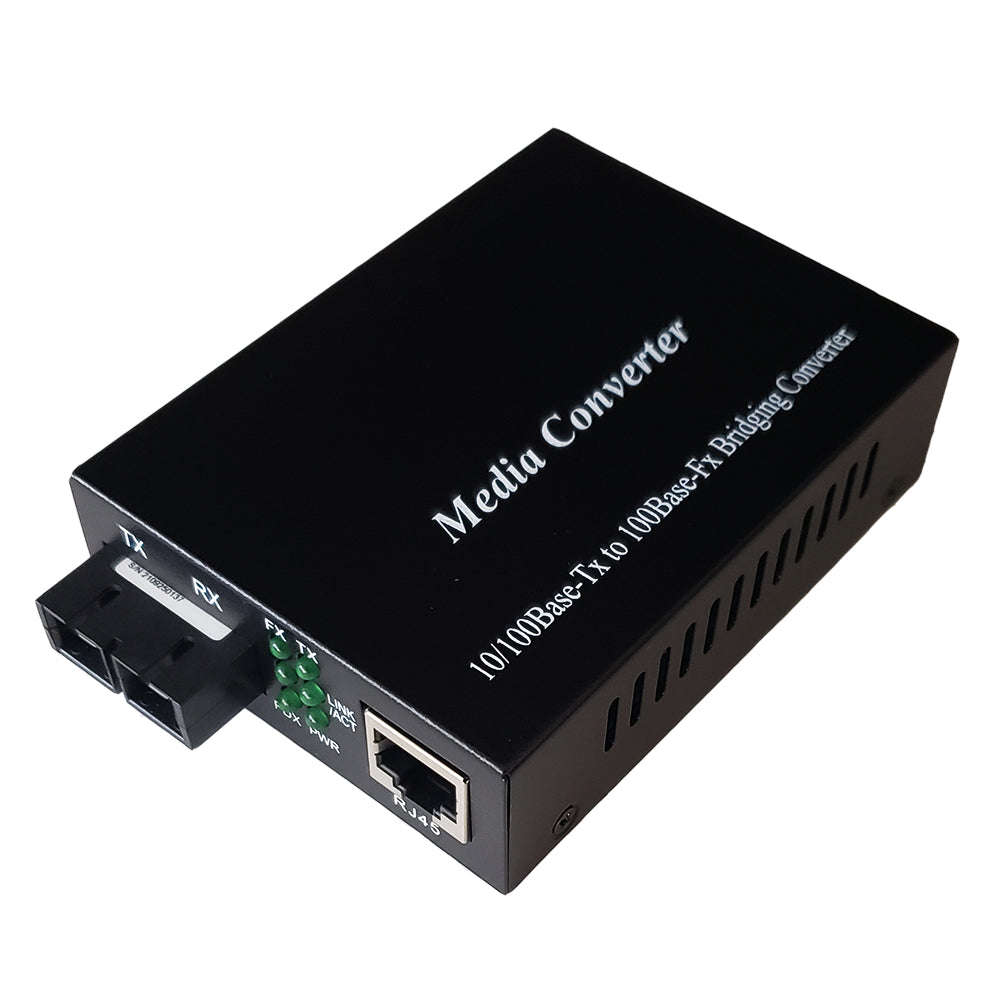

10/100 Multimode Media Converter 2km SC


Price:
Sale price$20.10 CAD
Stock:
In stock

Description

This multimode fiber optic media converter can extend a 10/100 Mbps Ethernet connection up to 2 km over a multimode SC fiber optic cable. The converter can be used as a standalone unit or in pairs. It can also be mounted into a 19" media converter chassis.

Note: Should be used in pairs.

Physical Characteristics
Color Black
Dimensions 94mm x 72mm x 25mm (L x W x H)
Housing Metal
Operating Temperature 0°C ~ 50°C
Relative Humidity 5% to 8% (non-condensation)
Standards IEEE802.3, IEEE802.3U, 10/100Base-TX, 100Base-FX
Power
Power Supply 1A@+5VDC or AC110V-265VAC or 48VDC
Power Consumption 2.5W
Connectors
Fiber Connector SC
Ethernet Connector RJ45 UTP
Performance
Media Supported 10Base-T: CAT3, 4, 5, UTP/STP, Max 100m
100-Base-TX: CAT5 UTP/STP, Max 100m
Multi-model fiber (50/125um, 62.5/125um)
Referenced Transmission Distance Dual-Fiber Multimode - 2km
Optical wavelength 1310nm
Data Forward Rate 10Mbps (14,880pps)
100Mbps (148,800pps)
Features Flow Control,

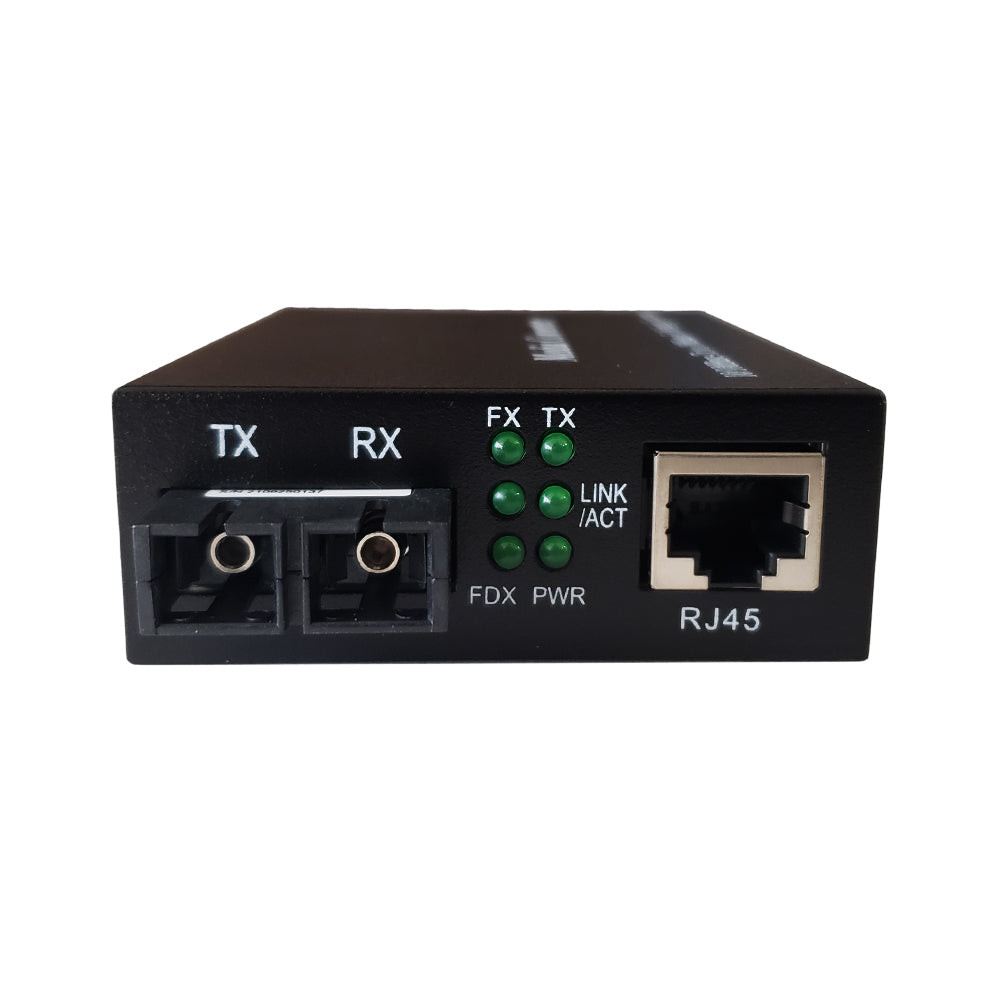

LED Status Description
LED Function Status Description
PWR Power LED ON Power is ON
OFF Power is OFF
LINK/ACT FX Fiber Port Link/Action Status LED ON Fiber Port is Linked
BLINK Fiber Port is Active
OFF Fiber Port is Not Linked
LINK/ACT TX UTP Port Link/Action Status LED ON UTP Port is Linked
BLINK UTP Port is Active
OFF UTP Port is Not Linked
FDX Duplex Mode ON TX works in full duplex mode
OFF TX works in half duplex mode
FX Fiber signal ON Fiber signal is detected
OFF Fiber signal is undetected
TX Transfer rate ON Transfer rate of UTP interface is 100Mbps
OFF Transfer rate of UTP interface is 10Mbps
Certifications
CE Yes
FCC Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.85 lbs [0.03kg]
Warranty Information
Warranty 1 Year
