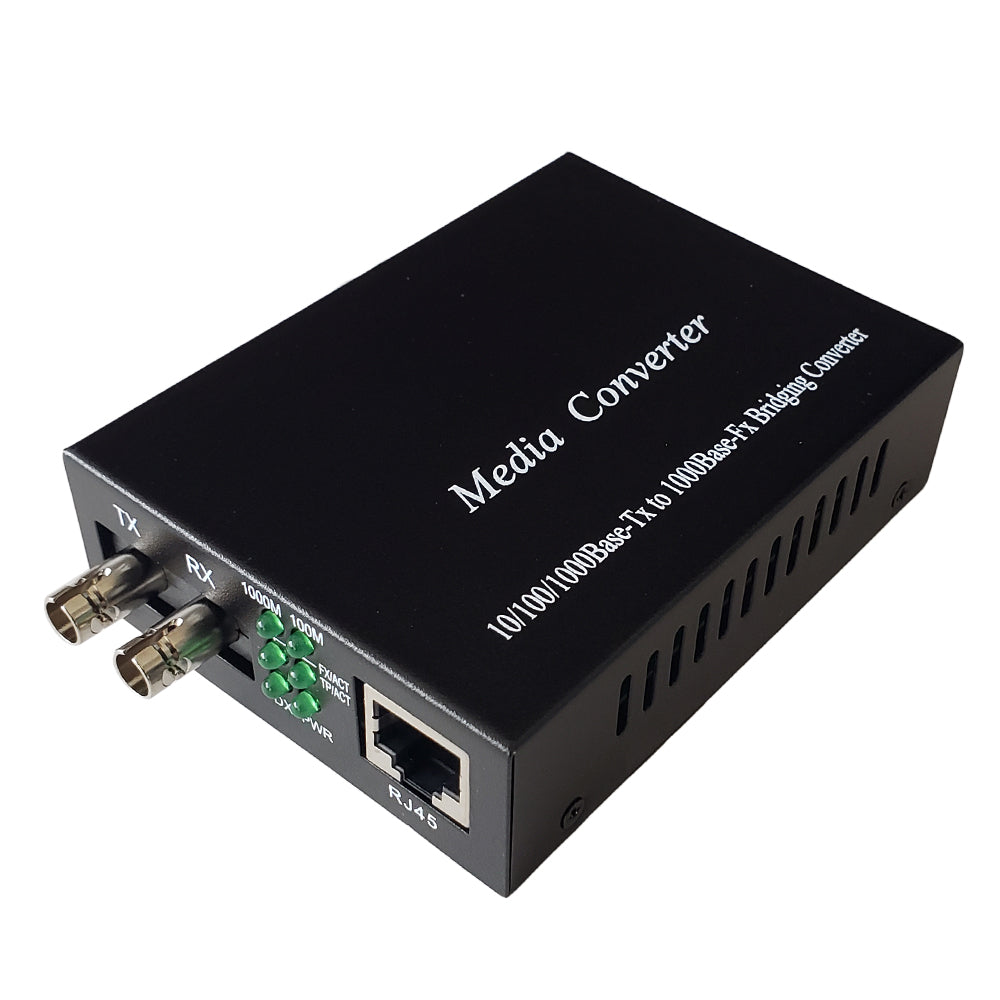

10/100/1000 Singlemode Media Converter 40km ST (1310nm)


Price:
Sale price$42.40 CAD
Stock:
In stock

Description

This singlemode fiber optic media converter can extend a 10/100/1000 Mbps Ethernet connection up to 40km over a singlemode ST fiber optic cable. The converter can be used as a standalone unit or in pairs.

Features

  • Supporting IEEE802.3 10 Base-T standard, IEEE802.3u 100Base-TX/FX standard
  • Supporting maximum 2M buffer memory built in chip
  • Supporting back pressure flow control for full duplex IEEE 802.3X and half duplex
  • Supporting automatic identification of MDI/MDI-X cross line
  • Supporting high performance 1.4Gbps memory bandwidth
Physical Characteristics
Color Black
Dimensions 98mm x 71mm x 26mm (L x W x H)
Housing Metal
Operating Temperature 0℃ ~ 60℃
Relative Humidity 5% to 90% (non-condensation)
Standards IEEE802.3 10 Base-T
IEEE802.3u 100Base-TX/FX
Power

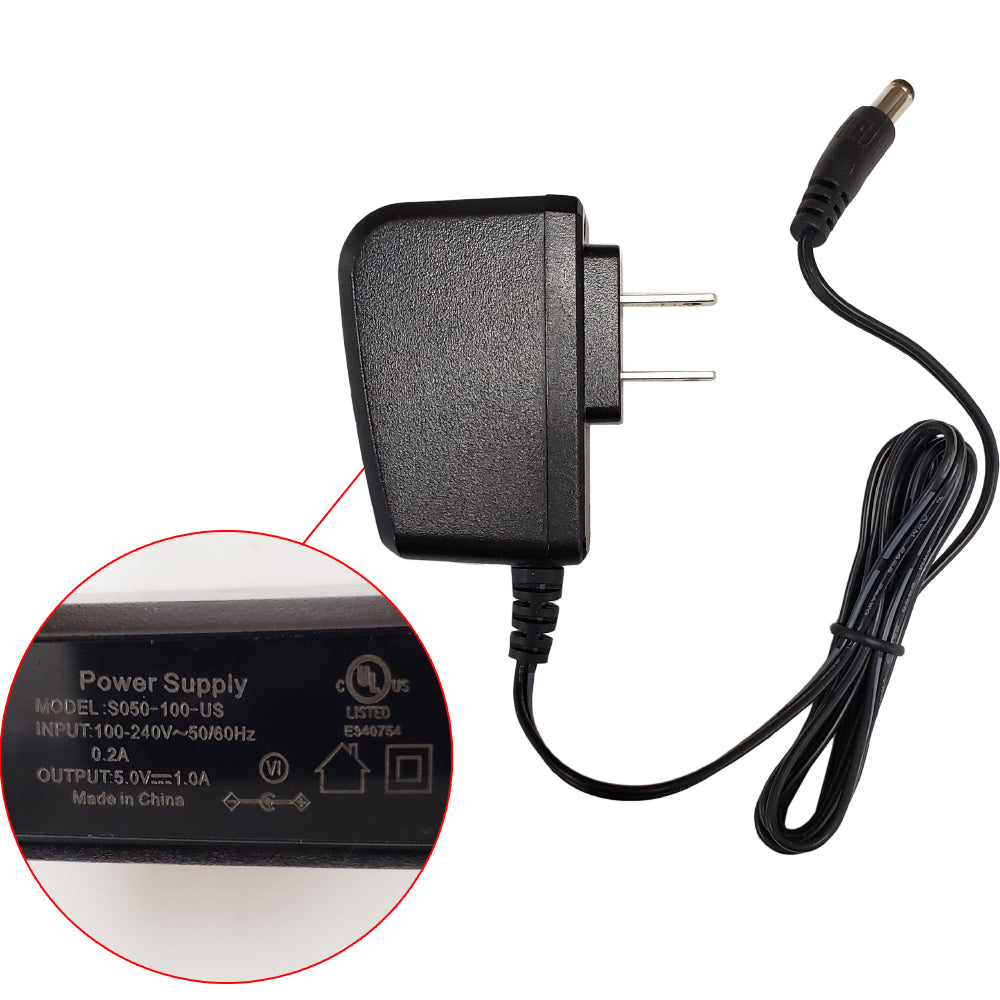

Power Supply Outside: 5V DC 2A
Built-in: 110-265V AC 48VDC
Connectors
Fiber Connector ST
Ethernet Connector RJ45 UTP
Performance
Transmission Distance

8.3/125, 8.7/125, 9/125 or 10/125um

40km

Data Forward Rate 10Mbps, 100Mbps, 1000Mbps
Wavelength
1310nm

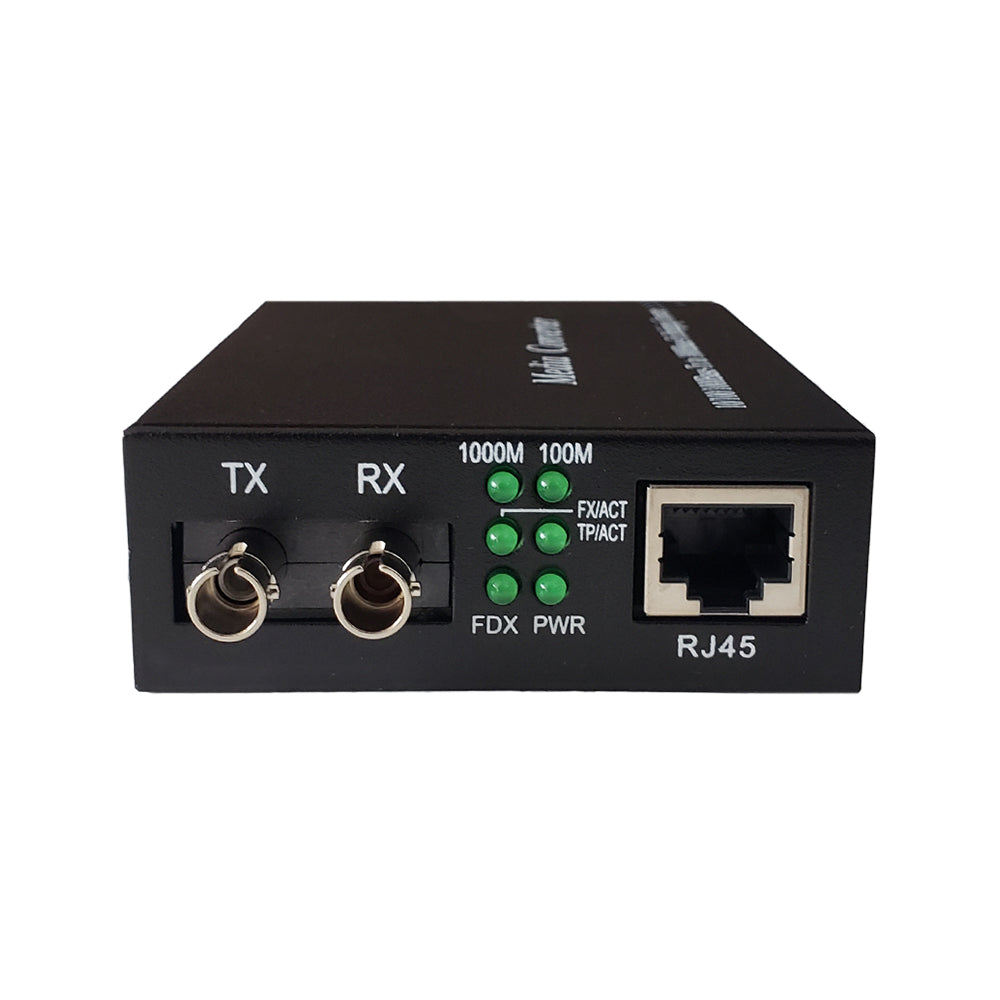

LED Status Description
LED Function Status Description
PWR Power LED ON Power is ON
OFF Power is OFF
100M UTP port ON Laser is Receiving
FX/ACT Fiber Port Link/Action Status LED ON Fiber Port is Linked
BLINK Fiber Port is Active
OFF Fiber Port is Not Linked
1000M UTP Port Speed LED ON 1000M Speed
TP/ACT UTP Port Link/Action Status LED ON UTP Port is Linked
BLINK UTP Port is Active
OFF UTP Port is Not Linked
FDX UTP Port Duplex LED ON Full Duplex
OFF Half Duplex
Certifications
CE Yes
FCC Yes
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.85 lbs [0.03kg]
Warranty Information
Warranty 1 Year
